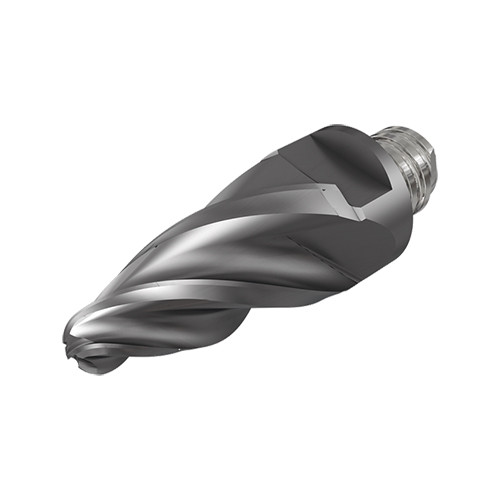

MM EOB08R1.5R80A13-6T05 IC908
End Mill Head; 2.88 mm Dia. × 14.1 mm LOC × 8 mm Shank Dia. × 25.1 mm OAL ; 6 FL ; T05 ; Carbide ; TiAlN ; IC908

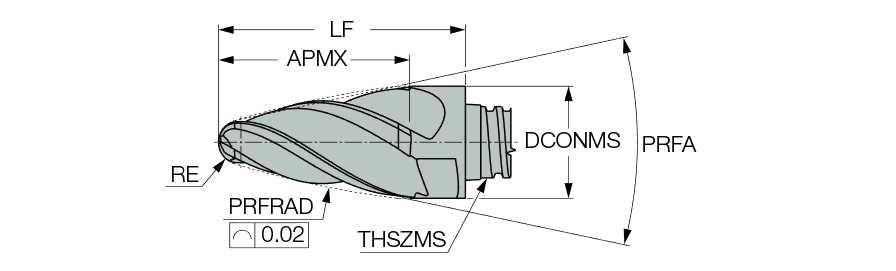

| Application | | Profiling | | Overall Length (OAL) | 25.1 mm |
| Cutting Diameter (DC) | 2.88 mm | Grade | IC908 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Coating | TiAlN |
| Flute Count (NOF) | 6 | Profile Angle (PRFA) | 24 Degrees |
| Corner Radius (RE) | 1.5 mm | Tool Cutting Edge Angle (KAPR) | 78 Degrees |
| Connection Thread Nominal Size Machine Side (THSZMS) | T05 | Measurement Type | Metric |
| Cutting Diameter Maximum (DCX) | 8 mm | Maximum Feed per Tooth (fz(max)) | 0.1 mm/tooth |
| Depth of Cut Maximum (APMX) | 14.1 mm | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Body Material | Carbide |
| Functional Length (LF) | 18 mm | Minimum Feed per Tooth (fz(min)) | 0.03 mm/tooth |
Product Features
| Family Description | Interchangeable Oval-Shaped (Barrel) Solid Carbide Heads for 3D Profiling. For Semi-Finish & Finishing Applications. | Country of Origin | Israel |
Shipping Info
Package Weight
15.5
