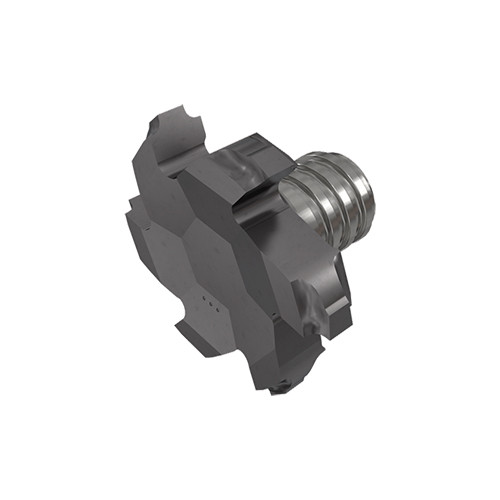

MM GRIT 28P-2.3-DR3.0 IC908
End Mill Head; 0.831″ Dia. × 0.602″ Shank Dia. × 0.844″ OAL ; 6 FL ; T10 ; Carbide ; TiAlN ; IC908

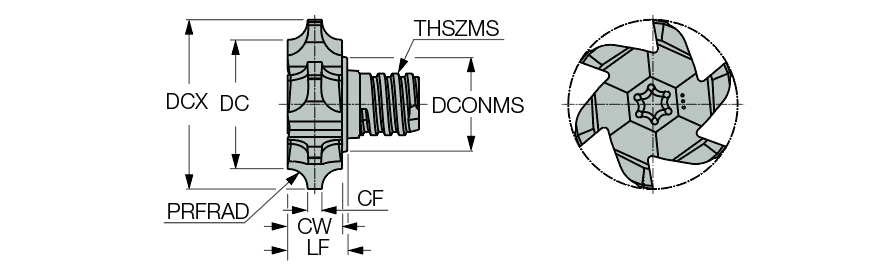

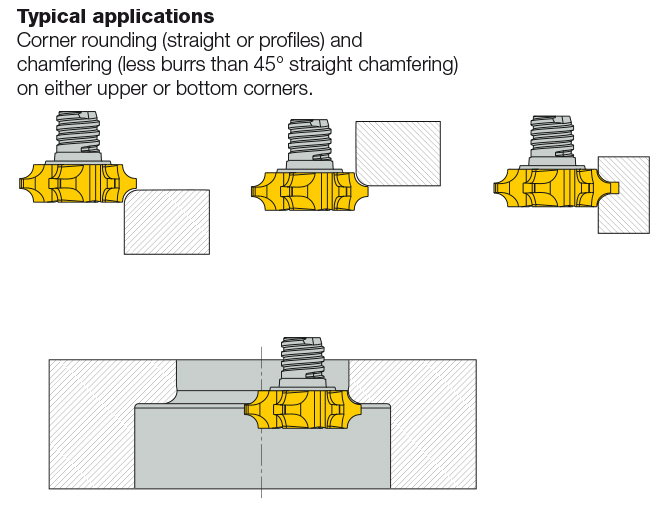

| Application | | Corner Rounding | | Functional Length (LF) | 0.382″ |
| Cutting Diameter (DC) | 0.831″ | Overall Length (OAL) | 0.844″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | IC908 |
| Flute Count (NOF) | 6 | Coating | TiAlN |
| Corner Radius (RE) | 0.1181″ | Measurement Type | Inch |
| Connection Thread Nominal Size Machine Side (THSZMS) | T10 | Cutting Edge Material | Carbide |
| Cutting Diameter Maximum (DCX) | 1.091″ | Body Material | Carbide |
| Cutting Width (CW) | 0.35″ | Connection Code Machine Side (CCMS) | MultiMaster |
| Connection Diameter Machine Side (DCONMS) | 0.602″ |
Product Features
| Family Description | Interchangeable 6 flute solid carbide double-sided corner round milling heads | Country of Origin | Israel |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection. |
Shipping Info
Package Weight
0.069
