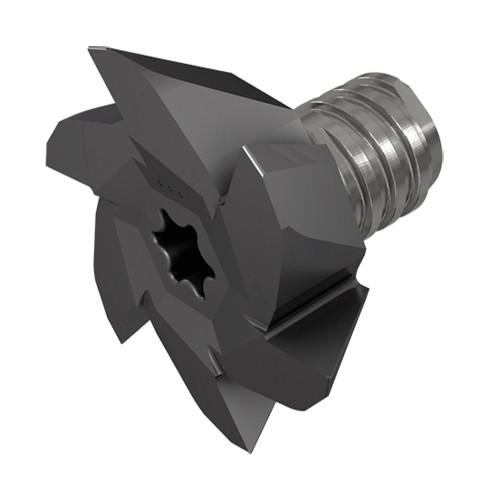

MM GRIT 28K-45D-6T10 IC908

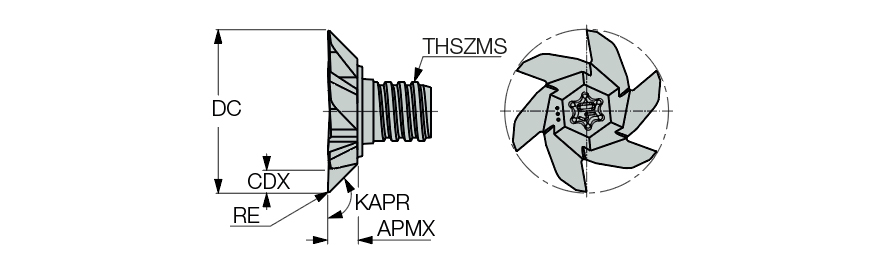

End Mill Head; 1.091″ Dia. × 0.165″ LOC × 0.157″ Max Depth ; 6 FL ; T10 ; Carbide ; TiAlN ; IC908
| Application | | Chamfering & Bottom Deburring | Side Slotting | | Grade | IC908 |
| Cutting Diameter (DC) | 1.091″ | Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Tool Cutting Edge Angle (KAPR) | 135 Degrees |
| Flute Count (NOF) | 6 | Measurement Type | Inch |
| Corner Radius (RE) | 0.0079″ | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | T10 | Tool Type | Solid chamfering endmills |
| Cutting Depth Maximum (CDX) | 0.157″ | Body Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.165″ | Connection Code Machine Side (CCMS) | MultiMaster |
| Cutting Width (CW) | 0.165″ |
Product Features
| Family Description | Interchangeable solid carbide dovetail groove milling heads. | Country of Origin | Israel |
| Remarks | Use carbide shanks for groove milling heads |
Shipping Info
Package Weight
0.1
