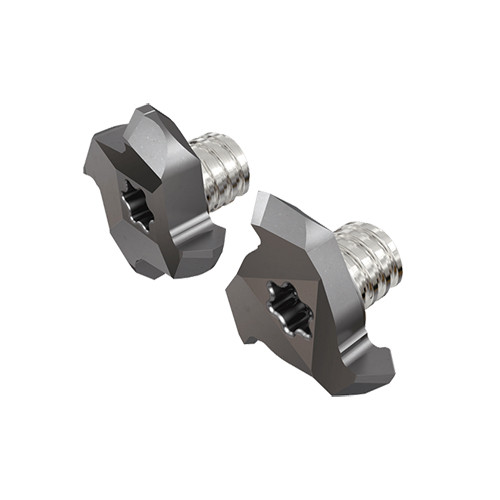

MM GRIT28K-45A-6T10 IC908

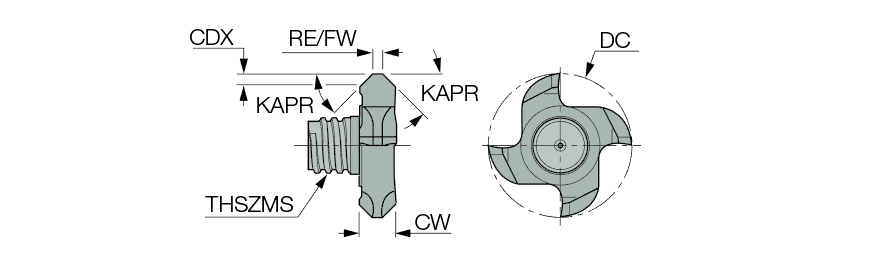

End Mill Head; 1.091″ Dia. × 0.157″ Max Depth × 0.848″ OAL ; 6 FL ; T10 ; Carbide ; TiAlN ; IC908
| Application | | Chamfering & Bottom Deburring | Slanted Shoulder & Chamfer | | Grade | IC908 |
| Cutting Diameter (DC) | 1.091″ | Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Flute Count (NOF) | 6 | Measurement Type | Inch |
| Connection Thread Nominal Size Machine Side (THSZMS) | T10 | Cutting Edge Material | Carbide |
| Cutting Depth Maximum (CDX) | 0.157″ | Body Material | Carbide |
| Cutting Width (CW) | 0.386″ | Connection Code Machine Side (CCMS) | MultiMaster |
| Overall Length (OAL) | 0.848″ |
Product Features
| Family Description | MULTI-MASTER, interchangeable solid carbide small diameter 45° chamfering heads. "P" suffix: positive geometry for soft and gummy materials. "K" suffix: to be used for general steel machining. | Country of Origin | Israel |
| Remarks | P-TYPE - Positive geometry for soft and gummy materials. K-Type - For general steel machining. Modification options on request. Do not apply lubricant to the threaded connection. For clamping instructions, click on More Info |
