MM GRIT28K1300-020-6T10 IC908

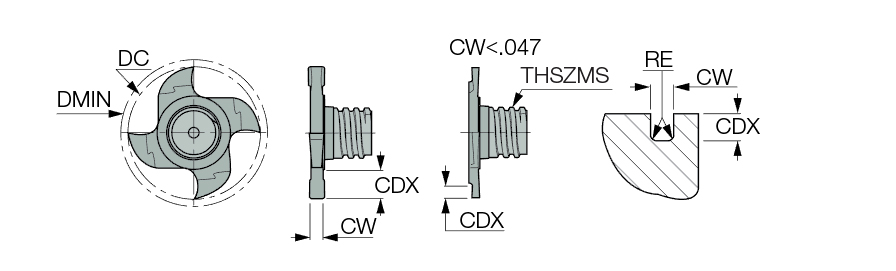

End Mill Head; 1.091″ Dia. × 0.236″ Max Depth ; 6 FL ; T10 ; Carbide ; TiAlN ; IC908
| Application | | Internal Groove Milling | Side Slotting | T Slotting | | Grade | IC908 |
| Cutting Diameter (DC) | 1.091″ | Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Flute Count (NOF) | 6 | Measurement Type | Inch |
| Corner Radius (RE) | 0.0079″ | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | T10 | Body Material | Carbide |
| Cutting Depth Maximum (CDX) | 0.236″ | Connection Code Machine Side (CCMS) | MultiMaster |
| Cutting Width (CW) | 0.512″ |
Product Features
| Family Description | MULTI-MASTER interchangeable solid carbide small diameter, groove milling heads. "P" suffix for sharp cutting edge. "K" suffix for T-land on cutting edge, to be used on steel and cast iron. | Country of Origin | Israel |
| Remarks | Recommended for O-rings and retaining rings K - for general steel & cast iron machining P - for soft and gummy materials Modification options on request Do not apply lubricant to the threaded connection For clamping instructions, click on More Info |
Shipping Info
Package Weight
0.216
