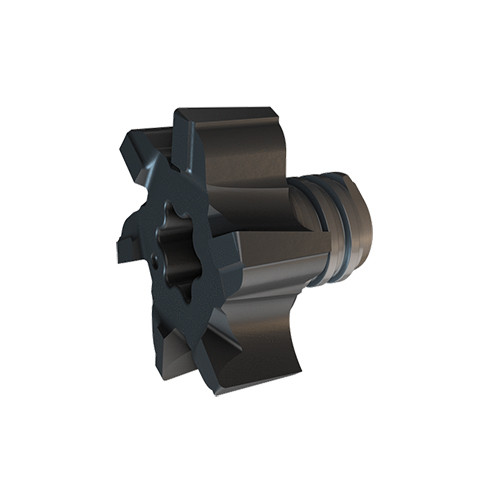

MM FM100-36R0.2-06T05 IC908
End Mill Head; 0.394″ Dia. × 0.1417″ LOC ; 6 FL ; T05 ; Carbide ; TiAlN ; IC908
| Application | | Facing | Rampdown | Shouldering | | Tool Cutting Edge Angle (KAPR) | 90 Degrees |

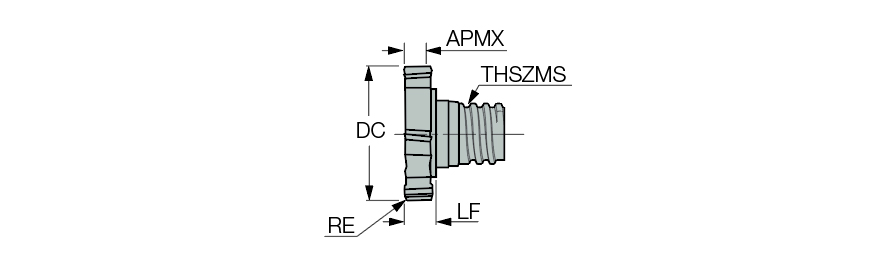

| Cutting Diameter (DC) | 0.394″ | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.0039 ″/tooth |
| Flute Count (NOF) | 6 | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0079″ | Ramping Angle Maximum (RMPX) | 1.9 Degrees |
| Connection Thread Nominal Size Machine Side (THSZMS) | T05 | Tool Type | Solid "T" slot cutters |
| Depth of Cut Maximum (APMX) | 0.1417″ | Body Material | Carbide |
| Functional Length (LF) | 0.173″ | Connection Code Machine Side (CCMS) | MultiMaster |
| Grade | IC908 | Minimum Feed per Tooth (fz(min)) | 0.0016 ″/tooth |
| Coating | TiAlN |
Product Features
| Family Description | Interchangeable solid carbide face milling heads with MULTI-MASTER threaded connections. | Country of Origin | Israel |
Shipping Info
Package Weight
0.028
