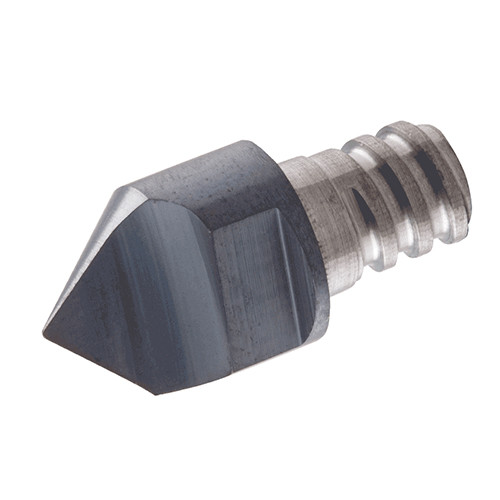

MM EPG060/60-1T04 IC908
End Mill Head; 0.236″ Dia. × 0.315″ Shank Dia. × 0.673″ OAL ; 1 FL ; T04 ; Carbide ; TiAlN ; IC908

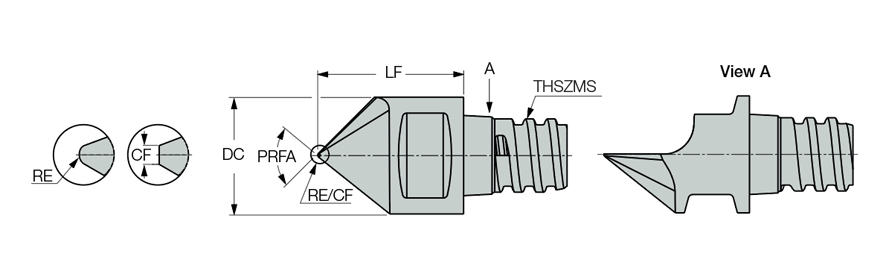

| Application | | Engraving | | Grade | IC908 |
| Cutting Diameter (DC) | 0.236″ | Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Profile Angle (PRFA) | 60 Degrees |
| Flute Count (NOF) | 1 | Measurement Type | Inch |
| Corner Radius (RE) | 0.0079″ | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | T04 | Tool Type | Solid chamfering endmills |
| Connection Diameter Machine Side (DCONMS) | 0.315″ | Body Material | Carbide |
| Functional Length (LF) | 0.335″ | Connection Code Machine Side (CCMS) | MultiMaster |
| Overall Length (OAL) | 0.673″ |
Product Features
| Family Description | Single flute MULTI-MASTER engraving tool head. | Country of Origin | Israel |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info Do not apply lubricant to the threaded connection |
Shipping Info
Package Weight
0.026
