MM EA060B03R0.0-3T04 IC08

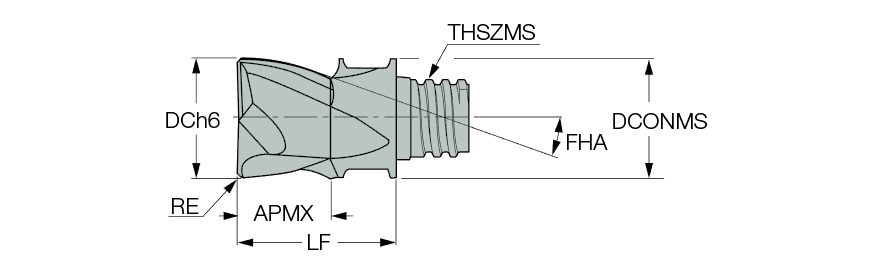

End Mill Head; 6 mm Dia. × 3.2 mm LOC × 5.8 mm Shank Dia. ; 3 FL ; T04 ; Carbide ; Uncoated ; IC08
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Grade | IC08 |
| Cutting Diameter (DC) | 6 mm | Coating | Uncoated |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Corner Radius (RE) | 0 mm | Maximum Feed per Tooth (fz(max)) | 0.05 mm/tooth |
| Connection Thread Nominal Size Machine Side (THSZMS) | T04 | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 3.2 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 5.8 mm | Tool Type | Solid carbide center cutting endmills 90° |
| Functional Length (LF) | 8.5 mm | Body Material | Carbide |
| Flute Helix Angle (FHA) | 45 Degrees | Minimum Feed per Tooth (fz(min)) | 0.02 mm/tooth |
Product Features
| Family Description | MULTI-MASTER, Interchangeable solid carbide slot drill milling heads with two or three 45° helix flutes. Used for machining aluminum | Country of Origin | Israel |
| Remarks | For tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection |
Shipping Info
Package Weight
0.024
