EBSI-A-3 375-437-C375 IC900

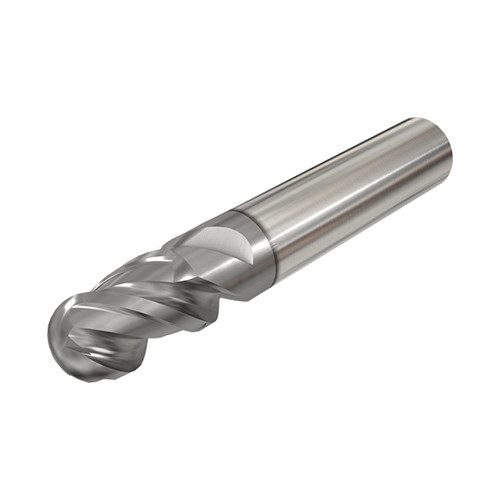

BN End Mill; 3/8″ Dia. × 0.437″ LOC × 3/8″ Shank Dia. × 3″ OAL ; 3 FL ; Carbide ; AlTiN

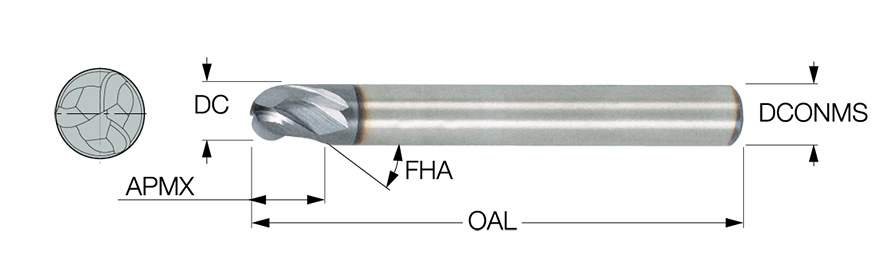

| Cutting Diameter (DC) | 3/8″ | Application | | Profiling | |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Corner Radius (RE) | 0.187″ |
| Depth of Cut Maximum (APMX) | 0.437″ | Grade | IC900 |
| Overall Length (OAL) | 3″ | Tool Type | Solid ball nose |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | AlTiN | Body Material | Carbide |
| Flute Count (NOF) | 3 | Decimal Equivalent | 0.375″ |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Inch |
| Shank Type | Round | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | 3 flute, 30° helix, short solid carbide ball nose endmills. | Country of Origin | S.Korea |
| Remarks | Short and stable design for contouring (roughing). |
Shipping Info
Package Weight
0.165
