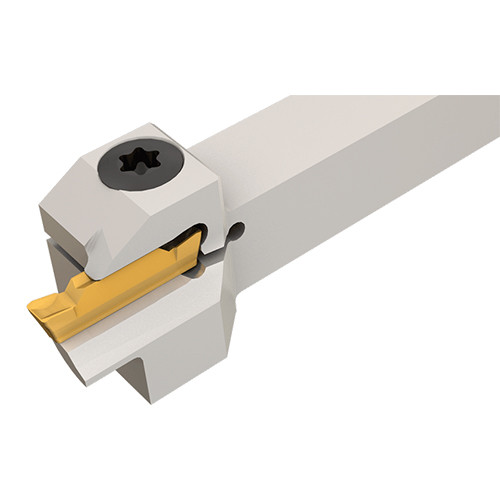

HGHL 2525-12-3T6

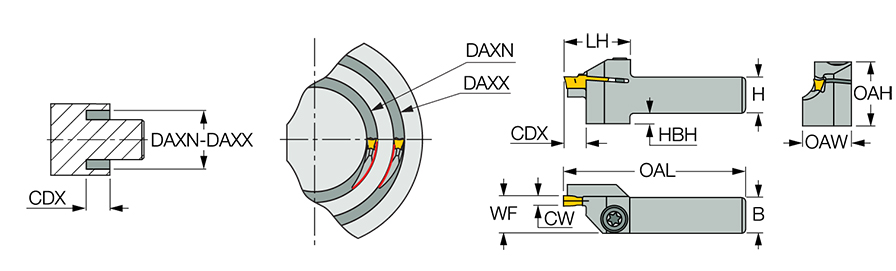

| Shank Width (B) | 25 mm | Axial Groove Outside Diameter Minimum (DAXN) | 12 mm |
| Shank Height (H) | 25 mm | Overall Length (OAL) | 120 mm |
| Cutting Depth Maximum (CDX) | 6 mm | Application | | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | |
| Cutting Width (CW) | 3 mm | Head Length (LH) | 19 mm |
| Cutting Width Maximum (CWX) | 3.2 mm | Tool Type | Face Turning & grooving Tools |
| Cutting Width Minimum (CWN) | 3 mm | Body Material | Steel |
| Cutting Direction (HAND) | Left Hand | Functional Width (WF) | 25 mm |
| Axial Groove Outside Diameter Maximum (DAXX) | 16 mm | Measurement Type | Metric |
Product Features
| Family Description | Integral holders for face grooving and turning | Country of Origin | Israel |

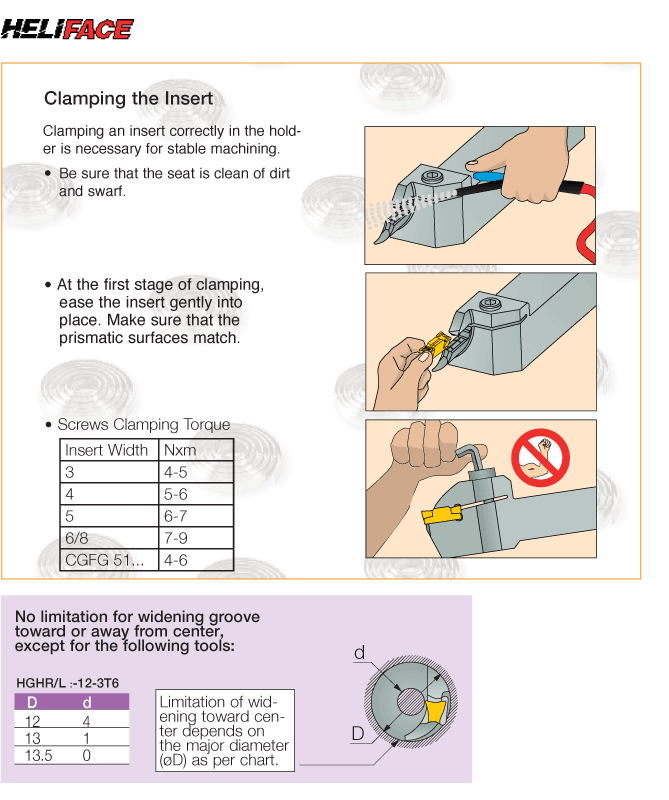

| Remarks | For insert clamping instructions and for widening limitations, click on More Info HGN & GRIP inserts can be used only with right-hand toolholders, HGPL inserts only with left-hand toolholders |
Shipping Info
Package Weight
1.235
