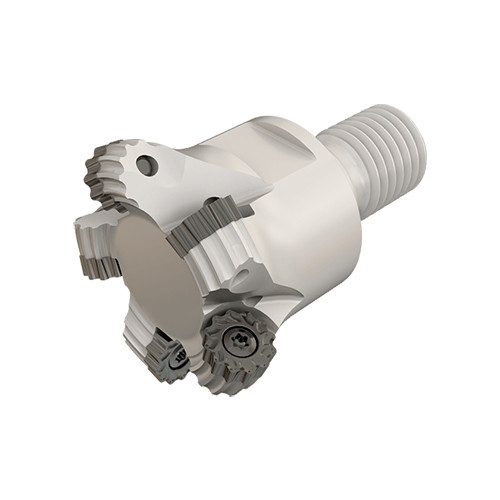

ERW D013A025-2-M12-12
Indexable End Mill; 13 mm Dia. × 6 mm LOC × 21 mm Shank Dia. × 57 mm OAL

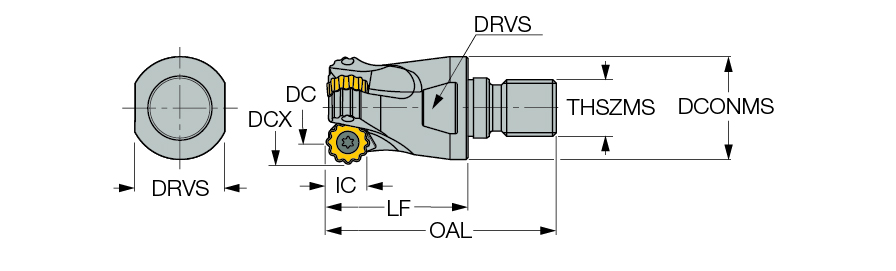

| Cutting Diameter (DC/DCX) | 13 mm | Tool Type | Round corner cutters |
| Cutting Diameter (DC) | 13 mm | Connection Thread Nominal Size Machine Side (THSZMS) | M12 |
| Cutting Item Count (CICT) | 2 | Drive Size (DRVS) | 17 mm |
| Depth of Cut Maximum (APMX) | 6 mm | Body Diameter (BD) | 0 mm |
| Overall Length (OAL) | 57 mm | Corner Radius (RE) | 6 mm |
| Ramping Angle Maximum (RMPX) | 2 Degrees | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Facing | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Shouldering | Slotting | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 21 mm | Measurement Type | Metric |
| Master Insert Identification (MIID) | RCCT 1206MO | Body Material | Steel |
| Weight of Item (WT) | 0.08 Kg | Connection Code Machine Side (CCMS) | FLEXFIT |
| Functional Length (LF) | 35 mm | Cutting Diameter Maximum (DCX) | 25 mm |
Product Features
| Family Description | MILLSHRED - Endmills with FLEXFIT threaded adaptation carrying round inserts with serrated cutting edges or regular round inserts. Used for rough machining applications on small dies and low power machines. | Country of Origin | Israel |
| Remarks | Before mounting the FLEX-FIT adaptation, clean the mating surfaces and threads. Tighten to eliminate gaps, using the torque value from TQ_3. For adaptation, click on More Info |
Shipping Info
Package Weight
0.340
