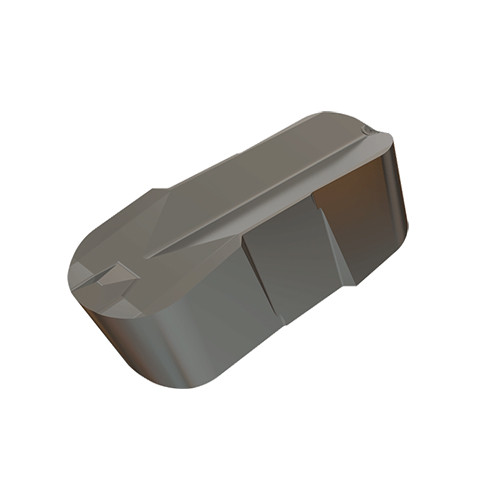

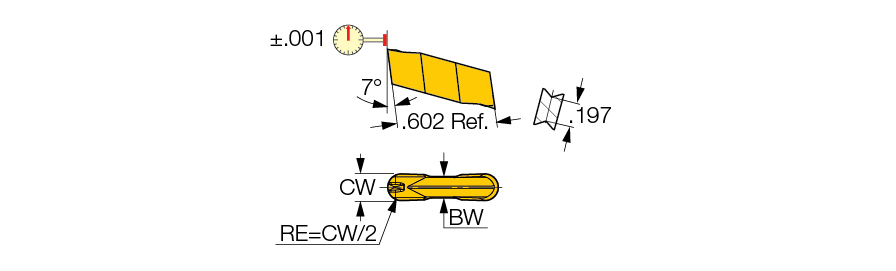

GIP 5.00E-2.50 IC428
| Cutting Width (CW) | 0.197″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.098″ | Application | | Ext. Grooving | Ext. Profiling | Int. Grooving | Int. Profiling | Side Slotting | |
| Cutting Depth Maximum (CDX) | 0.445″ | Applicable Material | | Steel | Cast Iron | Hard Materials | |
| Clearance Angle Major (AN) | 7 Degrees | Axial Groove Outside Diameter Minimum (DAXN) | 6.3″ |
| Insert Length (INSL) | 0.602″ | Measurement Type | Inch |
| Minimum Bore Diameter (DMIN) | 2.756″ | Tool Type | Groove-Turn Precision Inserts |
| Coating | TiC+Al2O3 | Body Material | Carbide |
| Grade | IC428 |
Product Features
| Family Description | Precision double-ended full radius inserts for profiling and grooving | Country of Origin | Israel |
| Remarks | DMIN for internal machining = 2.76 |
Shipping Info
Package Weight
0.015
