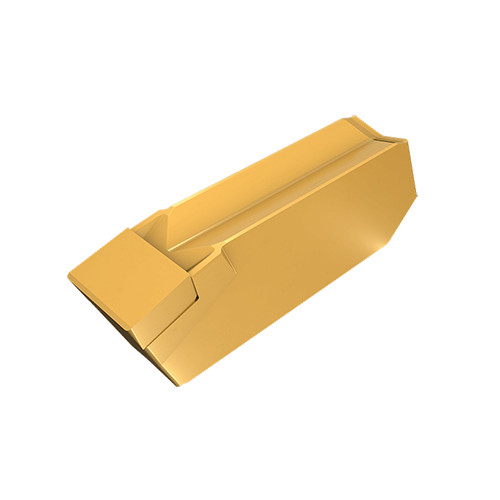

GITM 2.00K-0.2 IB50
Grooving Insert; 0.079″ CW ; PCBN ; IB50 ; Uncoated

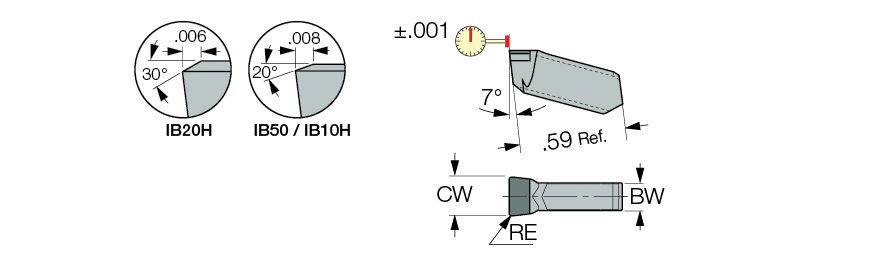

| Cutting Width (CW) | 0.079″ | Cutting Edge Material | PCBN |
| Corner Radius (RE) | 0.008″ | Application | | Ext. Grooving | Ext. Grooving & Turning | Int. Groove & Turn | Int. Grooving | |
| Clearance Angle Major (AN) | 7 Degrees | Applicable Material | | Cast Iron | Hard Materials | |
| Insert Length (INSL) | 0.591″ | Chip Breaker Type | K |
| Minimum Bore Diameter (DMIN) | 2.756″ | Measurement Type | Inch |
| Coating | Uncoated | Tool Type | Groove Turn Ultra hard Inserts |
| Grade | IB50 | Body Material | Carbide |
Product Features
| Family Description | CBN inserts for turning and grooving on hard ferrous materials. Used for finishing hard ferrous materials with 45-65 HRc, dry cutting recommended for interrupted cut. | Country of Origin | Switzerland |
| Remarks | DMIN for internal machining = 2.76 |
Shipping Info
Package Weight
0.015
