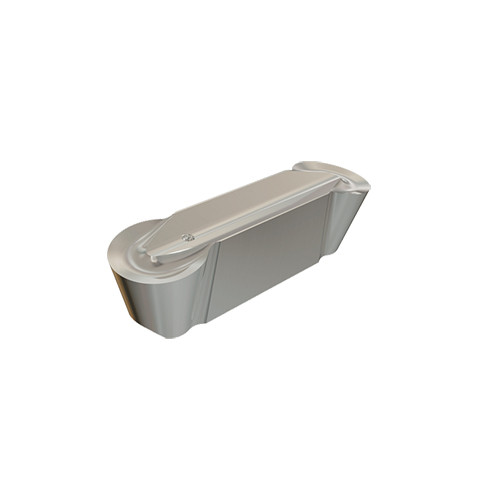

GIDA 80-40YZ IC1520
Grooving Insert; 0.315″ CW × 0.984″ Max Depth ; IC1520 ; DLC

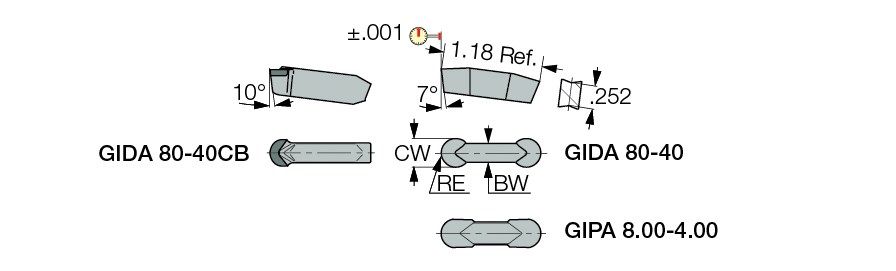

| Cutting Width (CW) | 0.315″ | Grade | IC1520 |
| Corner Radius (RE) | 0.1575″ | Application | | Ext. Grooving | Ext. Profiling | Ext. Turning Aluminum Wheels | Ext. Undercut | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | Int. Grooving | Int. Machining Aluminum Wheels | Int. Profiling | Int. Undercut & Turning | |
| Cutting Depth Maximum (CDX) | 0.984″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Clearance Angle Major (AN) | 7 Degrees | Measurement Type | Inch |
| Insert Length (INSL) | 1.181″ | Tool Type | Groove Turn AL,HTA Inserts Inserts |
| Coating | DLC | Body Material | Carbide |
Product Features
| Family Description | Full radius, precision ground inserts for machining aluminum wheels. Double-ended and polished to avoid built-up edge. Used in medium-to-high feeds. | Country of Origin | Israel |
| Remarks | ID5 is a single-ended PCD tipped insert |
Shipping Info
Package Weight
0.045
Related Documentation
Precision, double-ended, polished to avoid Built-Up edge. Excellent for turning and profiling aluminum wheels and soft materials at medium to high feeds.
