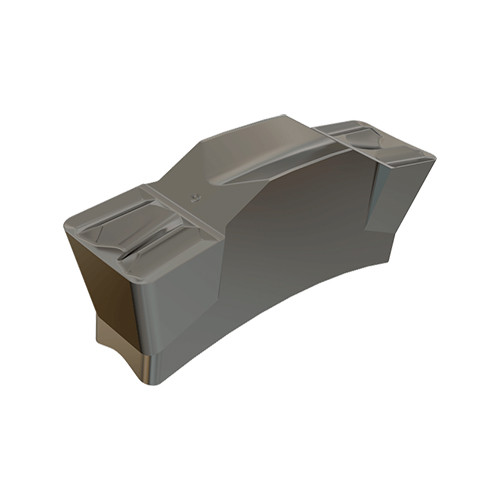

TGMF 404 IC354

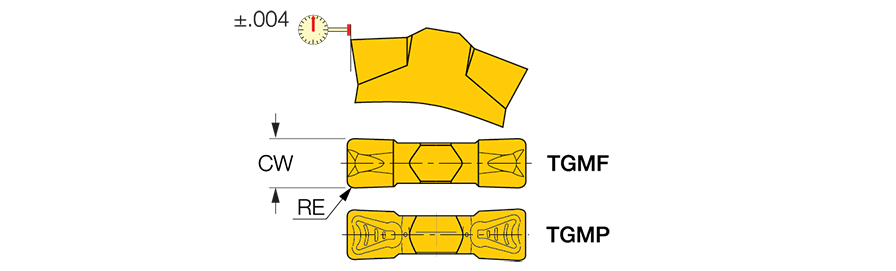

| Cutting Width (CW) | 0.157″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.016″ | Application | | Ext. Grooving | Ext. Grooving & Turning | Int. Groove & Turn | Int. Grooving | |
| Cutting Depth Maximum (CDX) | 0.575″ | Applicable Material | | Steel | Stainless Steel | |
| Minimum Bore Diameter (DMIN) | 0.807″ | Measurement Type | Inch |
| Coating | TiCN | Tool Type | Groove-Turn Utility Inserts |
| Grade | IC354 | Body Material | Carbide |
Product Features
| Family Description | Utility double-ended inserts for external and internal grooving and turning. | Country of Origin | Israel |
| Remarks | DMIN for internal application= .807 For more detailed cutting data, click on More Info |
Shipping Info
Package Weight
0.012
