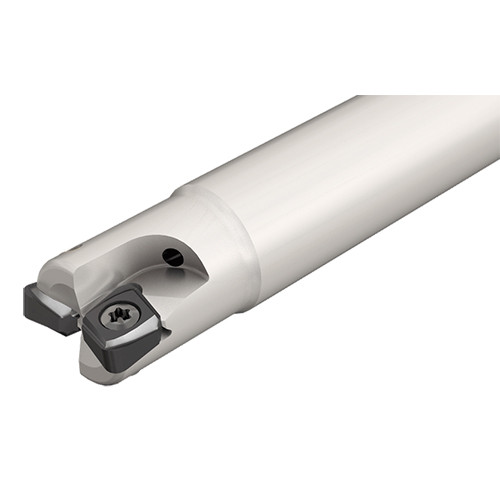

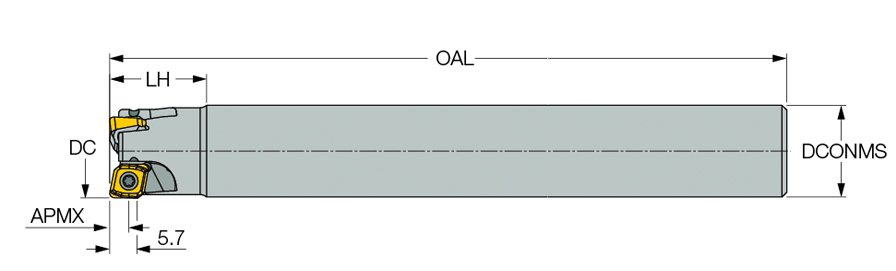

E90CN D16-2-L100-C15-07-C
Indexable End Mill; 16 mm Dia. × 4 mm LOC × 15 mm Shank Dia. × 100 mm OAL ; 2 FL ; Round Shank ; 90 Degrees
| Cutting Diameter (DC/DCX) | 16 mm | Weight of Item (WT) | 0.11 Kg |
| Cutting Diameter (DC) | 16 mm | Head Length (LH) | 20 mm |
| Cutting Item Count (CICT) | 2 | Tool Type | 90° indexable endmills |
| Depth of Cut Maximum (APMX) | 4 mm | Flute Count (NOF) | 2 |
| Overall Length (OAL) | 100 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 5 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Rampdown | Shouldering | Slotting | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 15 mm | Body Material | Steel |
| Master Insert Identification (MIID) | CNHT 070315 | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | 90° endmills carrying CNMT/HT .. inserts. Used mainly for milling square shoulders providing excellent finish of the shoulder side surface. They can ramp into the material to machine cavities. | Country of Origin | Israel |
| Remarks | For adaptation click on More Info Diameter D according to insert r1.0 |
Shipping Info
Package Weight
0.366
