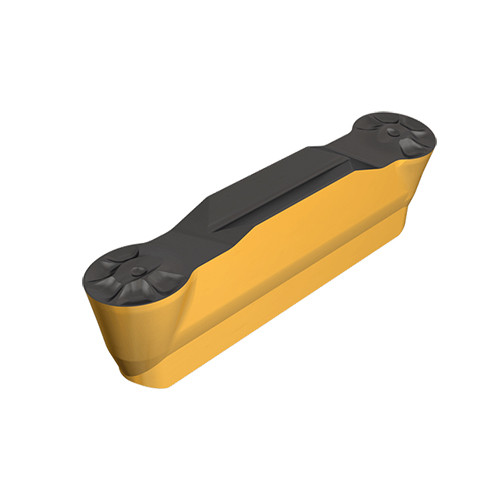

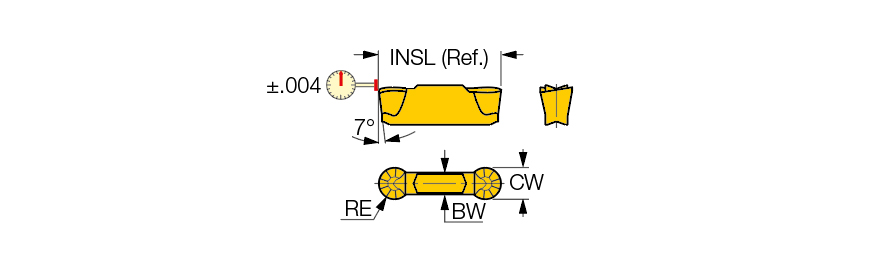

GRIP 476-238Y IC418
| Cutting Width (CW) | 0.187″ | Application | | Ext. Grooving | Ext. Profiling | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | Int. Grooving | Int. Profiling | |
| Corner Radius (RE) | 0.094″ | Applicable Material | | Cast Iron | |
| Clearance Angle Major (AN) | 7 Degrees | Axial Groove Outside Diameter Minimum (DAXN) | 0″ |
| Insert Length (INSL) | 0.748″ | Number of Teeth | 2 |
| Coating | TiC+Al2O3 | Measurement Type | Inch |
| Grade | IC418 | Tool Type | Groove-Turn Utility Inserts |
| Cutting Edge Material | Carbide | Body Material | Carbide |
Product Features
| Family Description | Full radius double-ended inserts, for turning and grooving in external, internal and face applications. | Country of Origin | Israel |
Shipping Info
Package Weight
0.010
