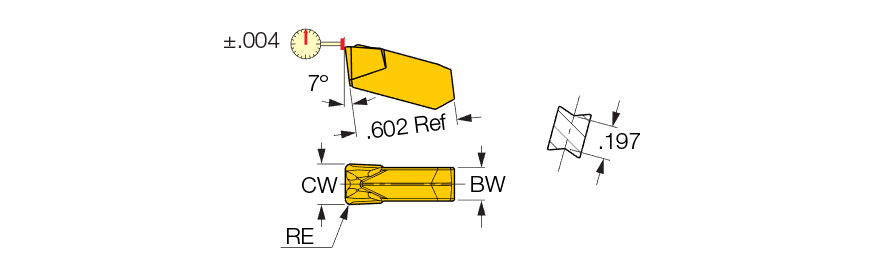

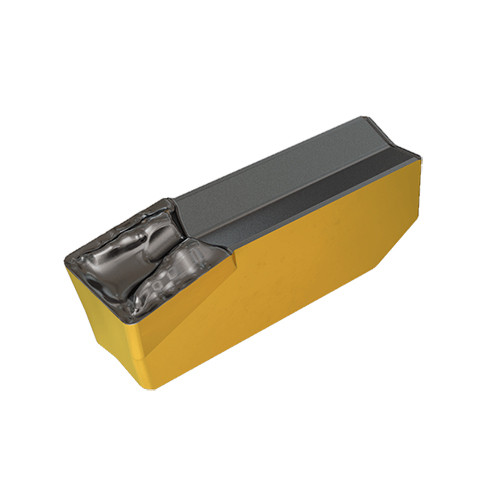

GIMT 808 IC830
Grooving Insert; 0.315″ CW ; Carbide ; IC830 ; AlTiN+TiN
| Cutting Width (CW) | 0.315″ | Application | | Ext. Grooving | Ext. Grooving & Turning | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | Int. Groove & Turn | Int. Grooving | |
| Corner Radius (RE) | 0.031″ | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Coating | AlTiN+TiN | Axial Groove Outside Diameter Minimum (DAXN) | 2.76″ |
| Grade | IC830 | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Body Material | Carbide |
Product Features
| Family Description | Utility single ended grooving and turning inserts with a chipformer optimized for grooving, partial grooving, turning and finish turning. Used for deep machining at low to medium feeds. | Country of Origin | Israel |
| Remarks | DMIN for internal applications = 2.76 |
Shipping Info
Package Weight
0.021
