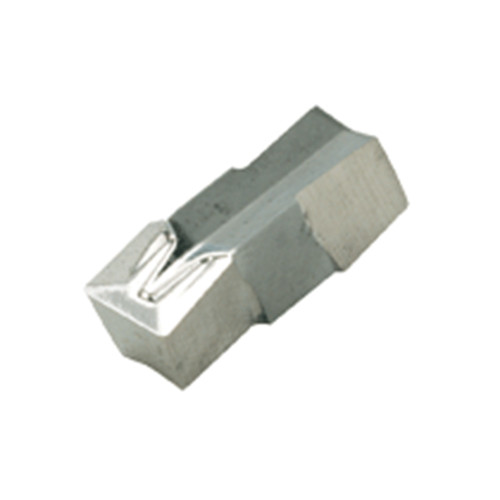

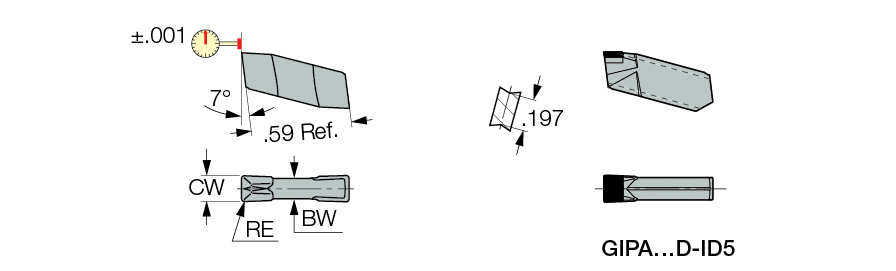

GIPA 6.00-0.40 IC1520
Grooving Insert; 0.236″ CW × 0.512″ Max Depth ; IC1520 ; DLC
| Cutting Width (CW) | 0.236″ | Grade | IC1520 |
| Corner Radius (RE) | 0.0157″ | Application | | Ext. Grooving | Ext. Grooving & Turning | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | Int. Groove & Turn | Int. Grooving | Side Slotting | |
| Cutting Depth Maximum (CDX) | 0.512″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Clearance Angle Major (AN) | 7 Degrees | Axial Groove Outside Diameter Minimum (DAXN) | 6.3″ |
| Insert Length (INSL) | 0.591″ | Measurement Type | Inch |
| Minimum Bore Diameter (DMIN) | 2.756″ | Tool Type | Groove Turn AL,HTA Inserts Inserts |
| Coating | DLC | Body Material | Carbide |
Product Features
| Family Description | Precision ground double-ended inserts, polished to avoid built-up edge, used for machining of aluminum at medium-to-high feeds. | Country of Origin | Israel |
| Remarks | DMIN for internal machining = 2.76 |
Shipping Info
Package Weight
0.018
