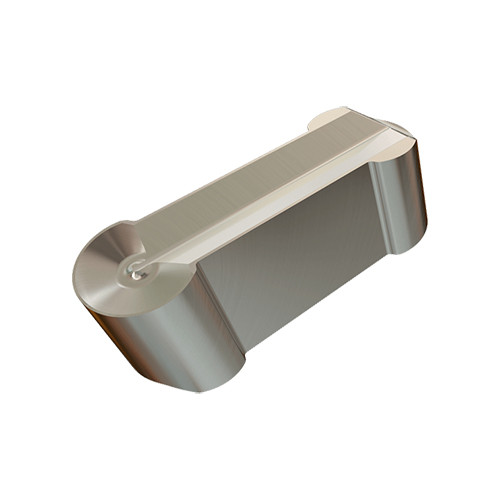

GIPA 5.00-2.50 IC1520

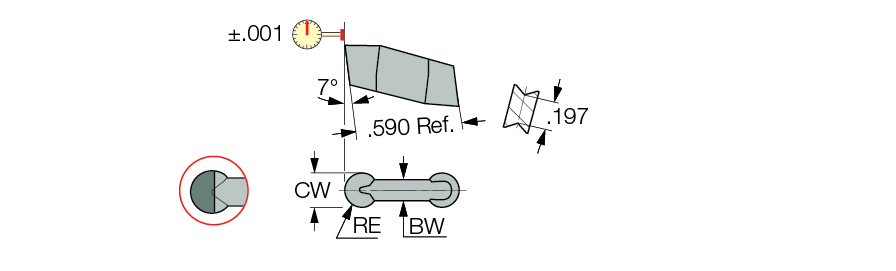

Grooving Insert; 0.197″ CW × 0.512″ Max Depth ; IC1520 ; DLC
| Cutting Width (CW) | 0.197″ | Application | | Ext. Grooving | Ext. Profiling | Ext. Turning Aluminum Wheels | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | Int. Grooving | Int. Machining Aluminum Wheels | Int. Profiling | Side Slotting | |
| Corner Radius (RE) | 0.098″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Cutting Depth Maximum (CDX) | 0.512″ | Axial Groove Outside Diameter Minimum (DAXN) | 6.3″ |
| Clearance Angle Major (AN) | 7 Degrees | Measurement Type | Inch |
| Insert Length (INSL) | 0.591″ | Tool Type | Groove Turn AL,HTA Inserts Inserts |
| Coating | DLC | Body Material | Carbide |
| Grade | IC1520 |
Product Features
| Family Description | Precision-ground double-ended inserts, polished to avoid built-up edge, used for external machining of aluminum at medium-to-high feeds. | Country of Origin | Israel |
Shipping Info
Package Weight
0.014
Related Documentation
Precision, double-ended, full radius. Polished to avoid BUE. Excellent for turning and profiling aluminum wheels and soft materials at medium to high feeds.
