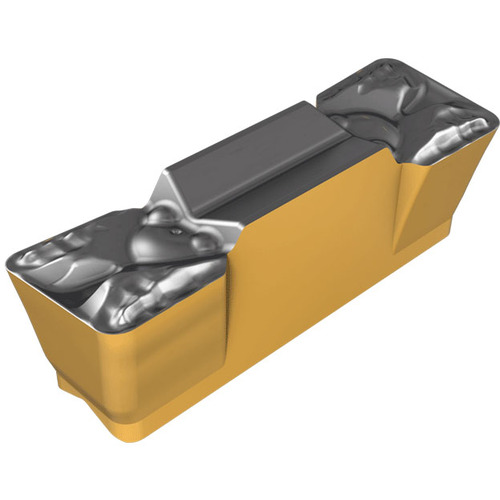

GRIP 6008T IC8250
Grooving Insert; 0.236″ CW ; Carbide ; IC8250 ; TiCN+Al2O3+TiN

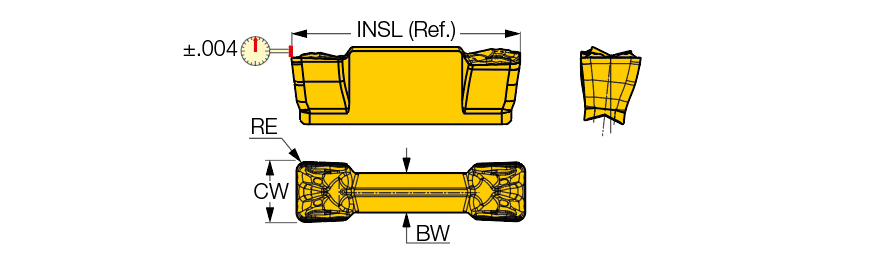

| Cutting Width (CW) | 0.236″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0315″ | Application | | Ext. Grooving | Ext. Grooving & Turning | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | Int. Face Grooving | Int. Groove & Turn | Int. Grooving | Parting | |
| Clearance Angle Major (AN) | 6.7 Degrees | Applicable Material | | Steel | Stainless Steel | |
| Insert Length (INSL) | 0.748″ | Measurement Type | Inch |
| Coating | TiCN+Al2O3+TiN | Tool Type | Groove-Turn Utility Inserts |
| Grade | IC8250 | Body Material | Carbide |
Product Features
| Family Description | Double-ended inserts, with an optimized chipbreaker for turning & grooving in external, internal and face applications. | Country of Origin | Israel |
Shipping Info
Package Weight
0
