GDMT 808 IC808

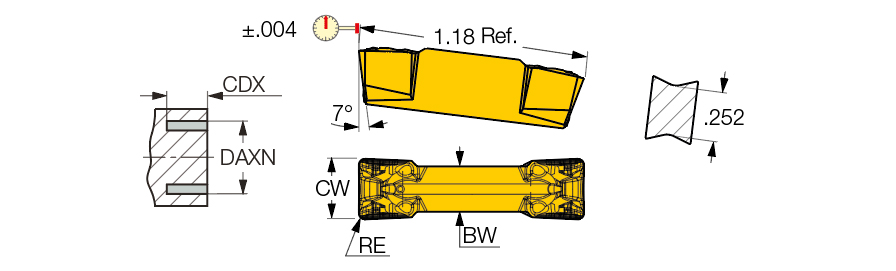

Grooving Insert; 0.315″ CW × 1.063″ Max Depth ; Carbide ; IC808 ; TiAlN+AlTiN+TiN
| Cutting Width (CW) | 0.315″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0315″ | Application | | Ext. Grooving | Ext. Grooving & Turning | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | Int. Groove & Turn | Int. Grooving | |
| Cutting Depth Maximum (CDX) | 1.063″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Clearance Angle Major (AN) | 7 Degrees | Measurement Type | Inch |
| Insert Length (INSL) | 1.181″ | Tool Type | Groove-Turn Utility Inserts |
| Coating | TiAlN+AlTiN+TiN | Body Material | Carbide |
| Grade | IC808 |
Product Features
| Family Description | Utility, double-ended inserts, with an optimized chipbreaker. Used for general, external, internal, heavy-duty turning and grooving. | Country of Origin | Israel |
Shipping Info
Package Weight
0.049
