FSPA 80-40YZ IC1520
Grooving Insert; 0.315″ CW × 0.331″ Thickness ; IC1520 ; DLC

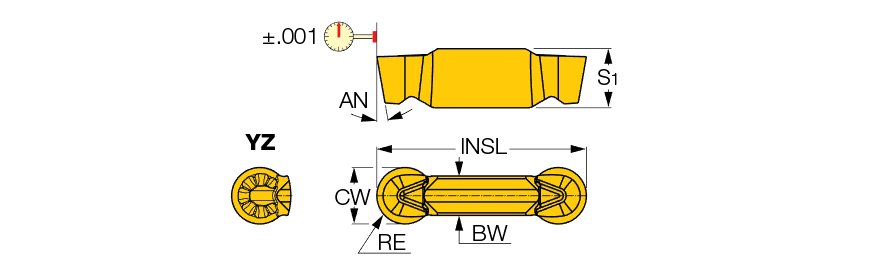

| Cutting Width (CW) | 0.315″ | Grade | IC1520 |
| Corner Radius (RE) | 0.157″ | Application | | Ext. Grooving | Ext. Profiling | Ext. Turning Aluminum Wheels | Face Grooving & Turning | Int. Machining Aluminum Wheels | Int. Undercut & Turning | |
| Clearance Angle Major (AN) | 10 Degrees | Measurement Type | Inch |
| Insert Thickness (S) | 0.331″ | Tool Type | Groove Turn AL,HTA Inserts Inserts |
| Insert Length (INSL) | 1.169″ | Body Material | Carbide |
Product Features

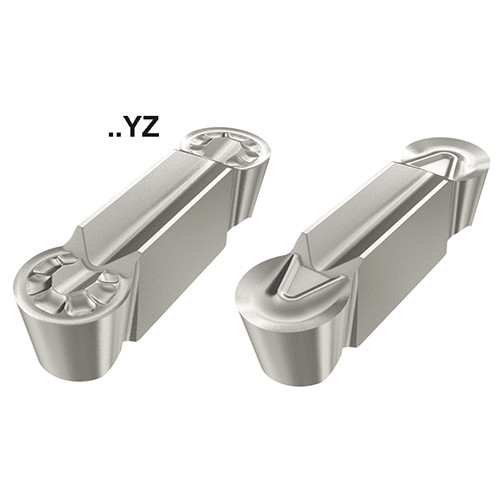

| Family Description | Double-ended full radius precision inserts with polished rake for machining aluminum and other soft materials. Used mainly for machining aluminum wheels at medium to high feeds. | Country of Origin | Israel |
Shipping Info
Package Weight
0.042
