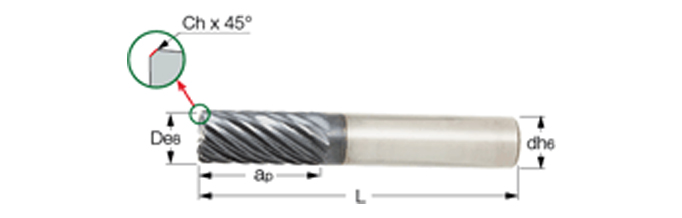

48J-7515S7RQ04 IN2003
SQ End Mill; 3/4″ Dia. × 1-1/2″ LOC × 3/4″ Shank Dia. × 5″ OAL ; 7 FL ; TiAlN
| Cutting Diameter (DC) | 3/4″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Application | Helical Interpolation | Rampdown | Shouldering |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Grade | IN2003 |
| Overall Length (OAL) | 5″ | Tool Type | Center Cut |
| Cutting Edge Material | Carbide | Body Material | Steel |
| Coating | TiAlN | Decimal Equivalent | 0.75″ |
| Flute Count (NOF) | 7 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 37 Degrees | Corner Radius (RE) / Chamfer Width (CHW) | Sharp |
| End Shape | Square |
Product Features
| Country of Origin | USA |
