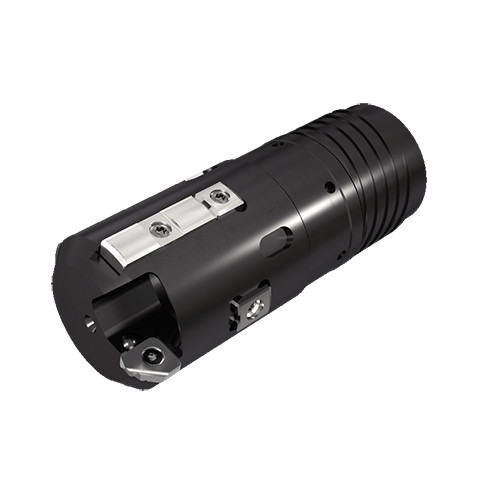

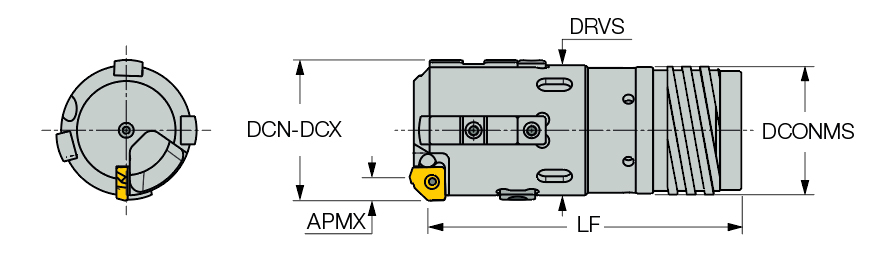

IDC-EA 1.426-1.559
| Connection Diameter Machine Side (DCONMS) | 1.299″ | Measurement Type | Inch |
| Flute Count (NOF) | 1 | Application | | Deep Drilling | |
| Cutting Diameter Maximum (DCX) | 1.559″ | Depth of Cut Maximum (APMX) | 0.1102″ |
| Cutting Diameter Minimum (DCN) | 1.426″ | Drive Size (DRVS) | 1.457″ |
| Body Material | Steel | Functional Length (LF) | 3.563″ |
Product Features
| Family Description | Double tube counterboring drills with outer 4-start thread connection, cartridges and adjustable diameter (.984-1.574″ dia.). | Country of Origin | Japan |
| Remarks | For spare parts and insert information, click on More Info Ordering example: DDC-EA 30.55 |
