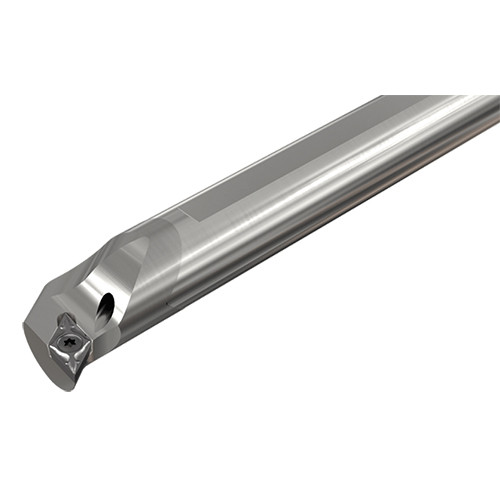

A16Q-SDUCL-07
Int. Turning Tool ; 180 mm OAL ; 15 mm Shank Height ; 16 mm Shank Dia. ; 180 mm LF ; 20 mm Min Bore Dia. ; Steel

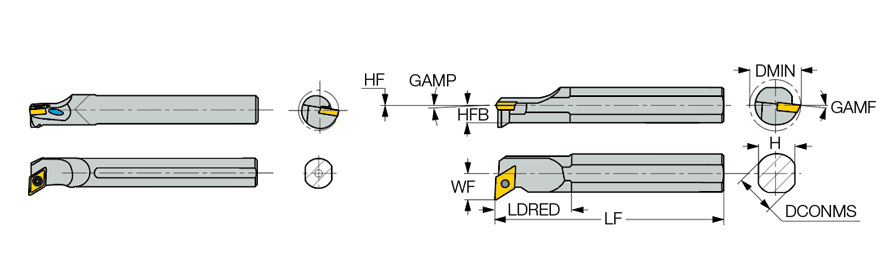

| Connection Diameter Machine Side (DCONMS) | 16 mm | Cutting Direction (HAND) | Left Hand |
| Functional Length (LF) | 180 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 180 mm | Application | | Int. 55° Diamond 93 95° Approac | |
| Reduced Body Diameter Length (LDRED) | 32 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Height (H) | 15 mm | Rake Angle Radial (GAMF) | -5 Degrees |
| Functional Width (WF) | 11.3 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | DC.. 0702 | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 20 mm | Measurement Type | Metric |
Product Features
| Family Description | Screw lock boring bars carrying 55° rhombic inserts with 7° clearance. | Country of Origin | Japan |
| Remarks | S - steel shank, A - steel shank with coolant hole, E - carbide shank with coolant hole |
Shipping Info
Package Weight
0.591
