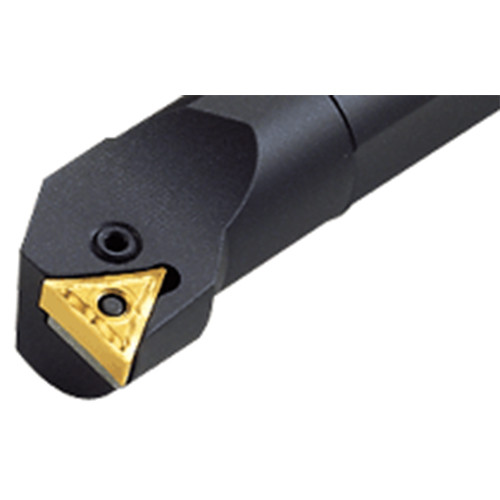

S40U PTFNR-16
Int. Turning Tool ; 350 mm OAL ; 36 mm Shank Height ; 40 mm Shank Dia. ; 350 mm LF ; 49 mm Min Bore Dia. ; Steel

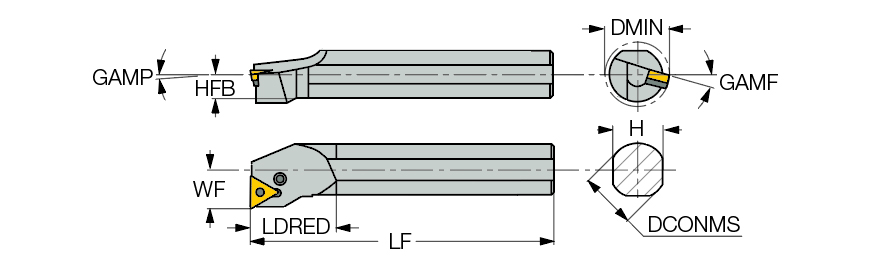

| Connection Diameter Machine Side (DCONMS) | 40 mm | Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 350 mm | Application | | Int. 60° Triangle 91° Approach | |
| Overall Length (OAL) | 350 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Reduced Body Diameter Length (LDRED) | 30 mm | Rake Angle Radial (GAMF) | -10 Degrees |
| Shank Height (H) | 36 mm | Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 27 mm | Body Material | Steel |
| Master Insert Identification (MIID) | TNMG 1604 | Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 49 mm |
Product Features
| Family Description | 91° entering angle lever lock boring bars carrying negative triangular inserts | Country of Origin | Israel |
Shipping Info
Package Weight
3272
