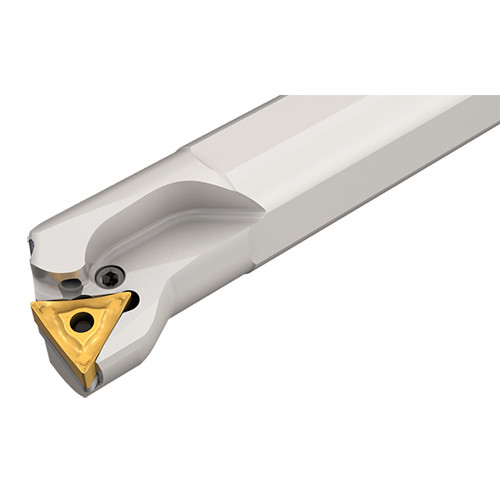

A32T PTFNR-16X

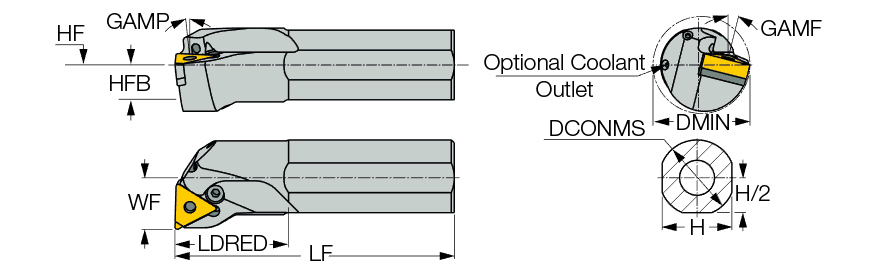

| Connection Diameter Machine Side (DCONMS) | 32 mm | Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 300 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 300 mm | Application | | Int. 60° Triangle 91° Approach | |
| Reduced Body Diameter Length (LDRED) | 48 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Height (H) | 29 mm | Rake Angle Radial (GAMF) | -12 Degrees |
| Functional Width (WF) | 22 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | TNMX 1606, TNMG 1604 | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 40 mm | Measurement Type | Metric |
Product Features
| Family Description | 91° entering angle lever lock boring bars carrying negative TNMX or TNMG triangular inserts | Country of Origin | Israel |
| Remarks | Use TTX 3 seat for TNMX 1606.. inserts and TTN 3 seat for TNMG 1604.. inserts |
Shipping Info
Package Weight
3.530
