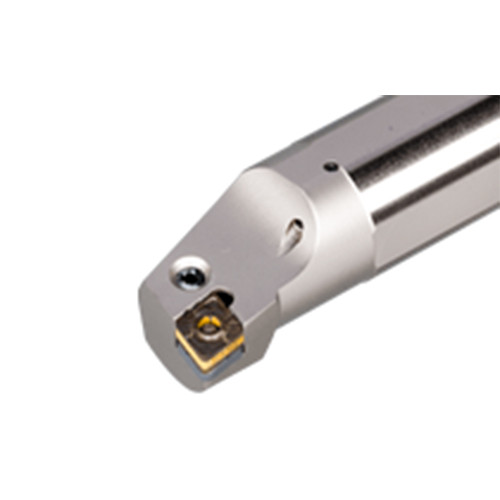

A32S PCLNL-09X
Int. Turning Tool ; 250 mm OAL ; 29 mm Shank Height ; 32 mm Shank Dia. ; 40 mm Min Bore Dia. ; Steel

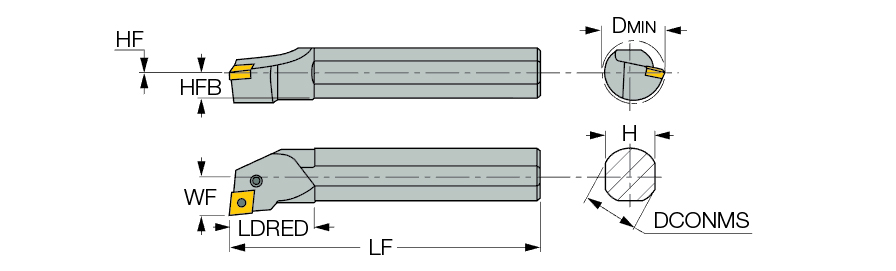

| Connection Diameter Machine Side (DCONMS) | 32 mm | Cutting Direction (HAND) | Left Hand |
| Functional Length (LF) | 250 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 250 mm | Application | | Int. 80° Diamond 95° Approach | |
| Reduced Body Diameter Length (LDRED) | 40 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Height (H) | 29 mm | Rake Angle Radial (GAMF) | -13 Degrees |
| Functional Width (WF) | 22 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | CNMX 0906, CNMG 0904 | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 40 mm | Measurement Type | Metric |
Product Features

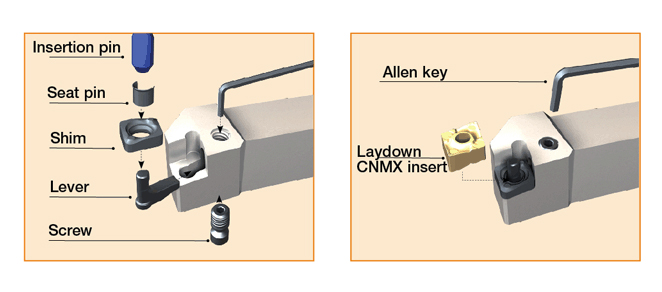

| Family Description | Lever lock boring bars carrying negative CNMX/CNMG 80° rhombic inserts, for heavy internal turning applications. | Country of Origin | Israel |
Shipping Info
Package Weight
2.886
