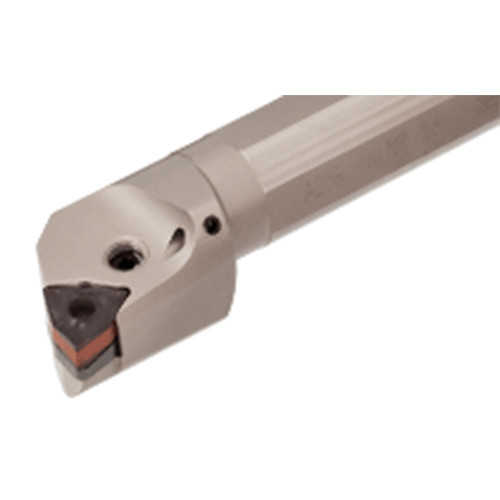

A20Q PWLNR-06G
Int. Turning Tool ; 180 mm OAL ; 18 mm Shank Height ; 20 mm Shank Dia. ; 25 mm Min Bore Dia. ; Steel

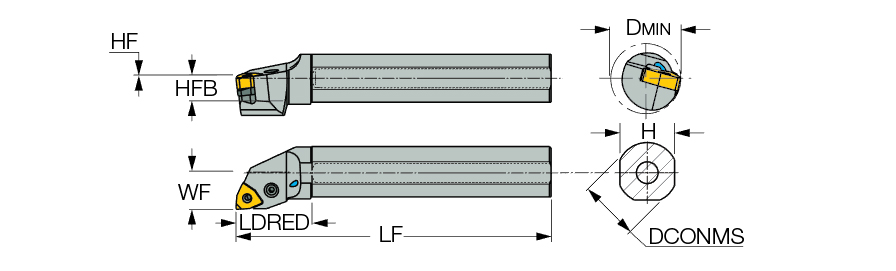

| Connection Diameter Machine Side (DCONMS) | 20 mm | Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 180 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 180 mm | Application | | Int. 80° Trigon 95° Approach | |
| Reduced Body Diameter Length (LDRED) | 35 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Height (H) | 18 mm | Rake Angle Radial (GAMF) | -14 Degrees |
| Functional Width (WF) | 13 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | WNMG 0604 | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 25 mm | Measurement Type | Metric |
Product Features
| Family Description | Lever lock boring bars with coolant holes carrying HELITURN LD WNMX or WNMG trigon inserts, for heavy machining applications. | Country of Origin | Israel |
Shipping Info
Package Weight
0.858
