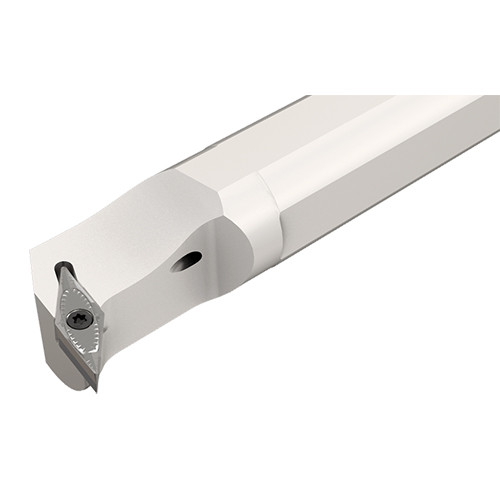

A40U SVLFCL-22
Int. Turning Tool ; 350 mm OAL ; 36 mm Shank Height ; 40 mm Shank Dia. ; 48 mm Min Bore Dia. ; Steel

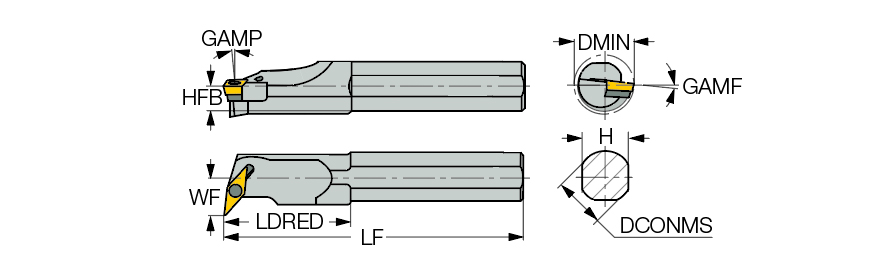

| Connection Diameter Machine Side (DCONMS) | 40 mm | Cutting Direction (HAND) | Left Hand |
| Functional Length (LF) | 350 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 350 mm | Application | | Int. 35° Diamond 95° Approach | |
| Reduced Body Diameter Length (LDRED) | 70 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Height (H) | 36 mm | Rake Angle Radial (GAMF) | -8 Degrees |
| Functional Width (WF) | 27 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | VC.. 2205 | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 48 mm | Measurement Type | Metric |
Product Features
| Family Description | 95° lead angle screw lock boring bars carrying 35° rhombic inserts with 7° clearance. S - Steel shank; A - Steel shank with coolant hole. | Country of Origin | Israel |
Shipping Info
Package Weight
6.402
