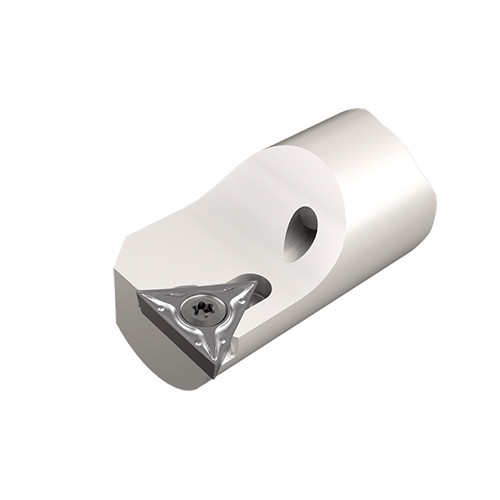

E16 STFCR-11 HEAD

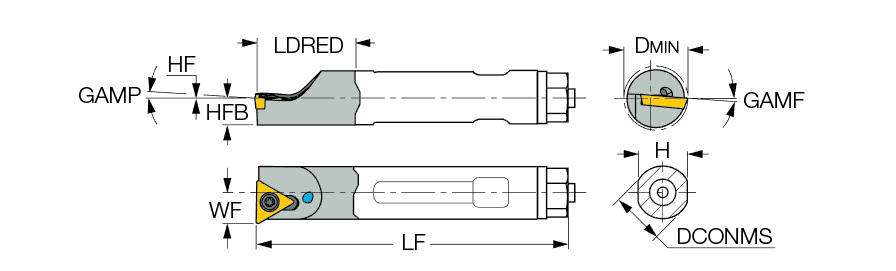

| Connection Diameter Machine Side (DCONMS) | 16 mm | Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 200 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 200 mm | Application | | Int. 60° Triangle 91° Approach | |
| Reduced Body Diameter Length (LDRED) | 37 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Height (H) | 15 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Functional Width (WF) | 9 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | TCMT 1102 | Body Material | Carbide |
| Minimum Bore Diameter (DMIN) | 20 mm | Measurement Type | Metric |
Product Features
| Family Description | Interchangeable screw clamped boring heads carrying positive 7° clearance triangular inserts mounted on carbide bars. | Country of Origin | Israel |
Shipping Info
Package Weight
0.117
