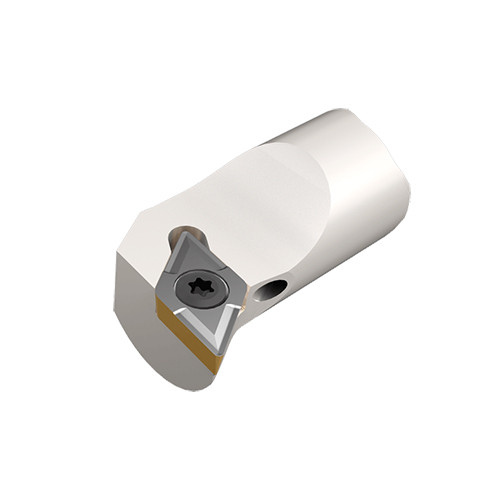

E12 SDUCL-07 HEAD

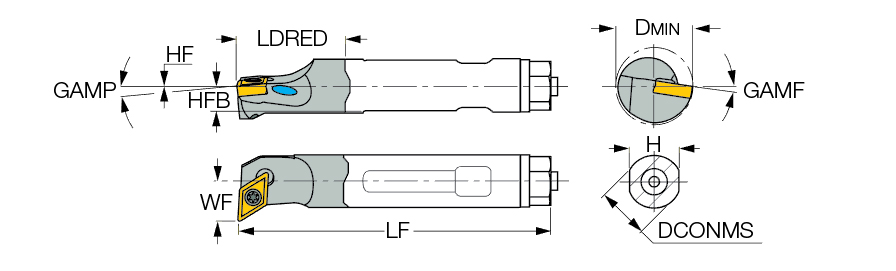

| Connection Diameter Machine Side (DCONMS) | 12 mm | Cutting Direction (HAND) | Left Hand |
| Functional Length (LF) | 179 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 179 mm | Application | | Int. 55° Diamond 93 95° Approac | |
| Reduced Body Diameter Length (LDRED) | 24.8 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Height (H) | 11 mm | Rake Angle Radial (GAMF) | -9 Degrees |
| Functional Width (WF) | 9 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | DCMT 070201-PF | Body Material | Carbide |
| Minimum Bore Diameter (DMIN) | 15.8 mm | Measurement Type | Metric |
Product Features
| Family Description | Interchangeable screw clamped boring heads carrying 55° rhombic inserts with positive 7° clearance mounted on a carbide bar | Country of Origin | Israel |
Shipping Info
Package Weight
0.082
