E12 STLPR-11 HEAD

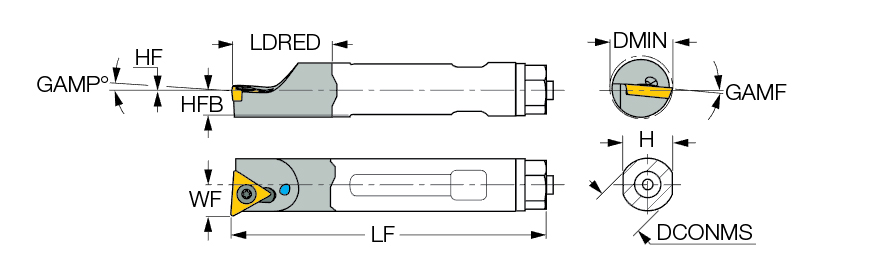

| Connection Diameter Machine Side (DCONMS) | 12 mm | Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 179 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 179 mm | Application | | Int. 60° Triangle 95° Approach | |
| Reduced Body Diameter Length (LDRED) | 24.8 mm | Rake Angle Axial (GAMP) | 4 Degrees |
| Shank Height (H) | 11 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Functional Width (WF) | 7 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | TPMT 110204-PF | Body Material | Carbide |
| Minimum Bore Diameter (DMIN) | 13.5 mm | Measurement Type | Metric |
Product Features

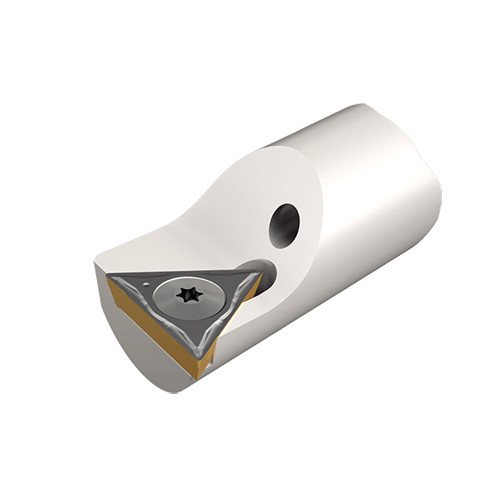

| Family Description | Interchangeable screw clamped boring heads for positive 11° clearance triangular inserts, mounted on carbide bars. | Country of Origin | Israel |
Shipping Info
Package Weight
0.077
