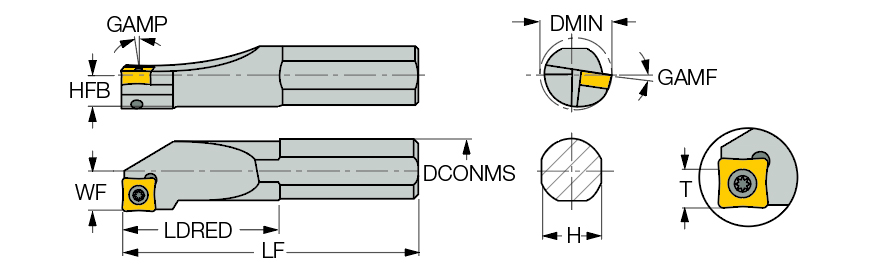

S25S SQLCR-09
| Connection Diameter Machine Side (DCONMS) | 25 mm | Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 250 mm | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 250 mm | Application | | Int. 80° Q#MG 95° Approach | |
| Reduced Body Diameter Length (LDRED) | 55 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Height (H) | 15 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Functional Width (WF) | 17 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | QCMT 09T304 | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 32 mm | Measurement Type | Metric |
Product Features

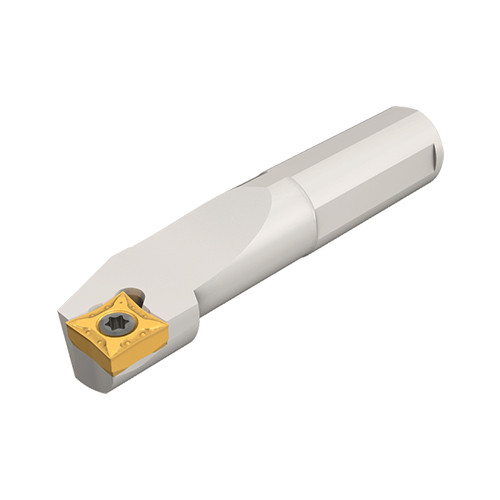

| Family Description | Screw lock boring bars carrying 80° square inserts with 7° clearance, AD-short bars for adapter holders. | Country of Origin | Israel |
| Remarks | For T, click on More Info |
Shipping Info
Package Weight
2.046
