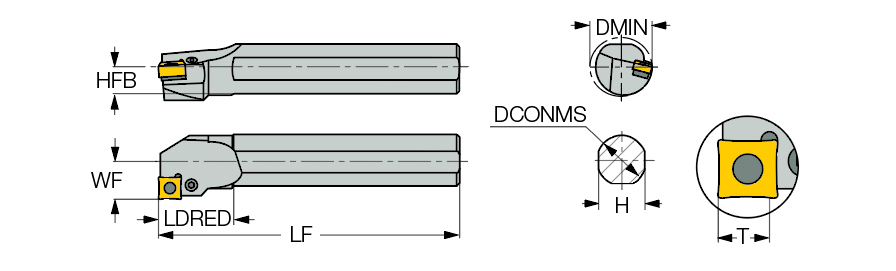

S20Q PQFNL-09
| Connection Diameter Machine Side (DCONMS) | 20 mm | Cutting Direction (HAND) | Left Hand |
| Functional Length (LF) | 180 mm | Application | | Int. 80° Q#MG 95°Approach Face | |
| Overall Length (OAL) | 180 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Reduced Body Diameter Length (LDRED) | 40 mm | Rake Angle Radial (GAMF) | -12 Degrees |
| Shank Height (H) | 18 mm | Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 13 mm | Body Material | Steel |
| Master Insert Identification (MIID) | QNMG 0904... | Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 28 mm |
Product Features

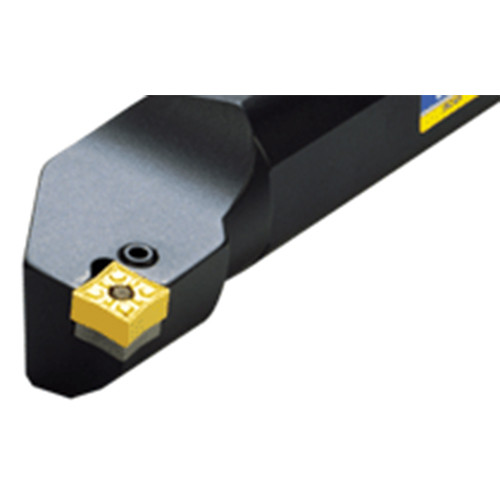

| Family Description | Lever lock boring bars carrying negative square inserts with 80° corners for internal facing. | Country of Origin | Israel |
| Remarks | T for r 0.8, click on More Info |
Shipping Info
Package Weight
0.968
