S32U PQLNR-09

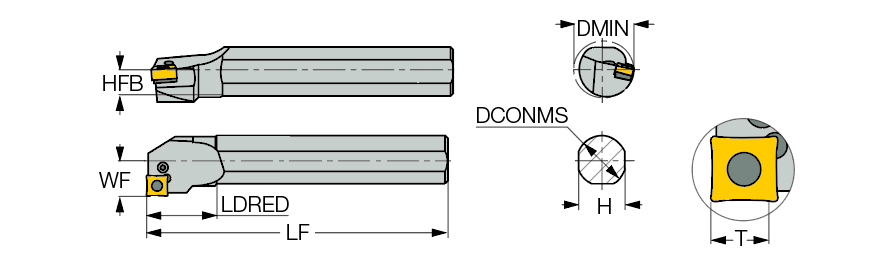

| Connection Diameter Machine Side (DCONMS) | 32 mm | Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 350 mm | Application | | Int. 80° Q#MG 95° Approach | |
| Overall Length (OAL) | 350 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Reduced Body Diameter Length (LDRED) | 45 mm | Rake Angle Radial (GAMF) | -10 Degrees |
| Shank Height (H) | 29 mm | Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 22 mm | Body Material | Steel |
| Master Insert Identification (MIID) | QNMG 0904 | Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 40 mm |
Product Features

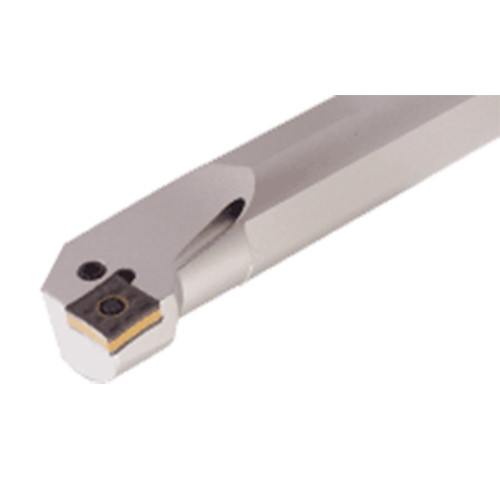

| Family Description | Lever lock boring bars carrying negative square inserts with 80° corners. S - Steel shank; A - Steel shank with coolant hole. | Country of Origin | Israel |
Shipping Info
Package Weight
4.749
