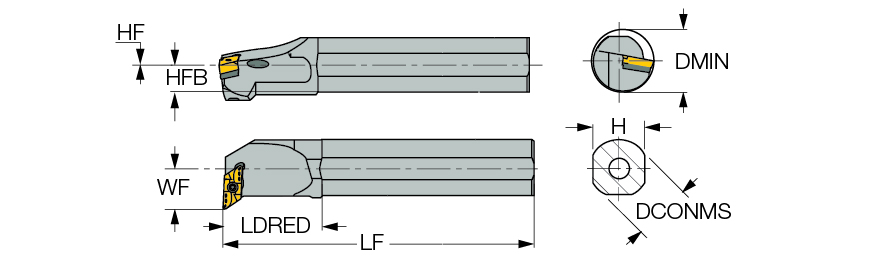

| Connection Diameter Machine Side (DCONMS) | 32 mm | Cutting Direction (HAND) | Left Hand |
| Functional Length (LF) | 350 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 350 mm | Application | | Int. 55° Diamond 93 95° Approac | |
| Reduced Body Diameter Length (LDRED) | 54 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Height (H) | 29 mm | Rake Angle Radial (GAMF) | -10 Degrees |
| Functional Width (WF) | 22 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | KNMX 160405-RP | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 39 mm | Measurement Type | Metric |

Product Features
| Family Description | Screw lock boring bars for 55° parallelogram inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
4.081
