| Overall Length (OAL) | 1.157″ | Application | | External Threading | |
| Head Length (LH) | 0.811″ | Rake Angle Axial (GAMP) | 10 Degrees |
| Functional Width (WF) | 0.63″ | Rake Angle Radial (GAMF) | 1.5 Degrees |
| Master Insert Identification (MIID) | M TNMB 3-2-MS | Tool Type | Internal Indexble -Turn Tool |
| Cutting Direction (HAND) | Left Hand | Body Material | Steel |
| Coolant Supply Property (CSP) | Coolant Thru | Measurement Type | Inch |
Product Features

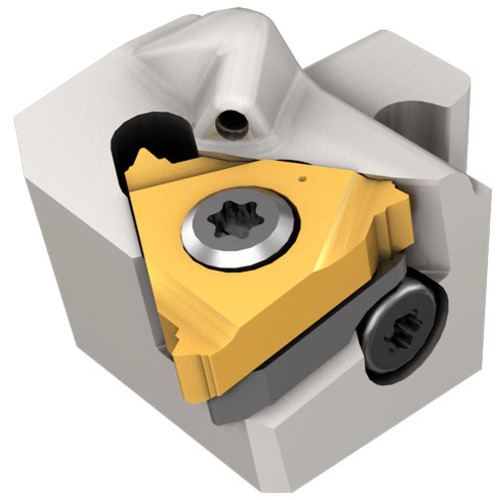

| Family Description | Screw Lock JETCUT Modular Heads which Mount ISO Laydown Threading Inserts for Swiss-Type Machines | Country of Origin | Israel |
| Remarks | Use only RH Shank with RH Head and LH Shank with LH Head Use Type M anvils (e.g., AE22M) for multi-tooth inserts. If a Type M anvil is unavailable, modify a standard anvil by grinding down its teeth |
Shipping Info
Package Weight
0.168
