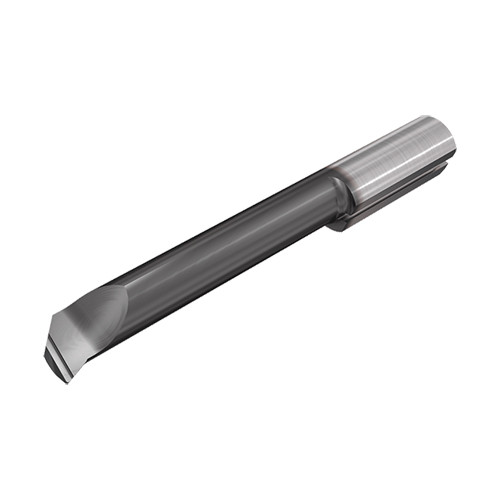

PICCO L 050.6-35C IC908
Boring Bar; 0.236″ Shank Dia. × 0.236″ Min Bore Dia. × 0.02″ Max Bore Depth × 1.378″ LU × 1.968″ LF ; 0.006″ Corner Radius ; Carbide ; TiAlN

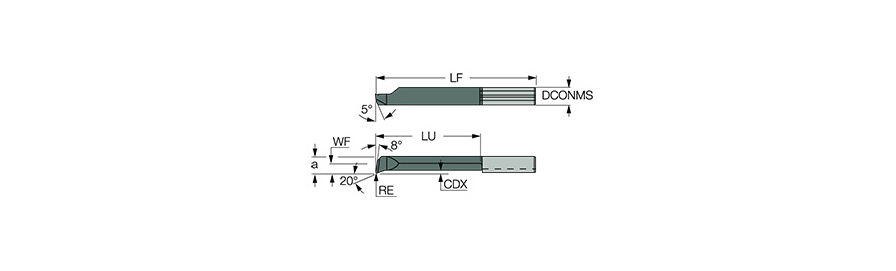

| Connection Diameter Machine Side (DCONMS) | 0.236″ | Corner Radius (RE) | 0.006″ |
| Minimum Bore Diameter (DMIN) | 0.236″ | Cutting Depth Maximum (CDX) | 0.02″ |
| Functional Length (LF) | 1.968″ | Functional Width (WF) | 0.091″ |
| Cutting Direction (HAND) | Left Hand | Usable Length (LU) | 1.378″ |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC908 | Cutting Edge Material | Carbide |
| Application | | Int. Boring and Profiling | | Tool Type | Solid Carbide Turn Tool |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Inch |
| Front End Width (a) | 0.209″ |
Product Features

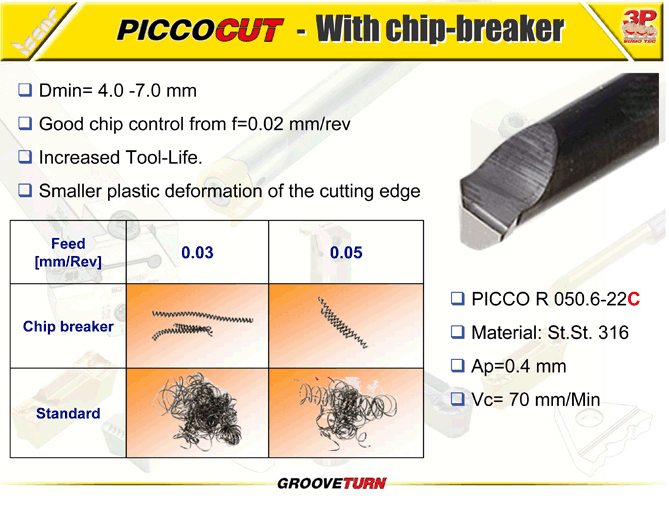

| Family Description | PICCOCUT inserts with chipformers for internal boring and profiling. | Country of Origin | Israel |
| Remarks | All left-hand inserts on request |
Shipping Info
Package Weight
0.037
