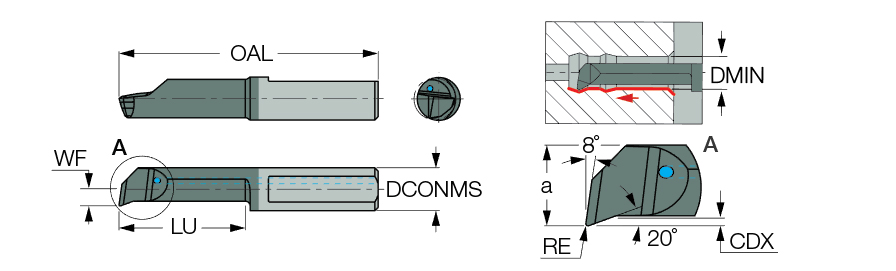

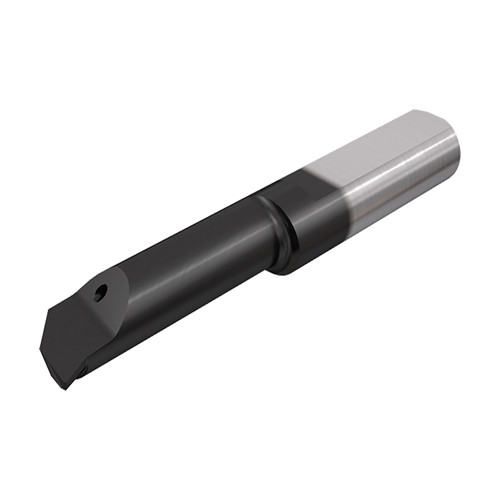

PICCO R 050.7-20NB IB55
Boring Bar; 7.05 mm Shank Dia. × 6.8 mm Min Bore Dia. × 0.6 mm Max Bore Depth × 20.5 mm LU × 42.5 mm LF ; 0.15 mm Corner Radius ; PCBN ; Uncoated
| Connection Diameter Machine Side (DCONMS) | 7.05 mm | Corner Radius (RE) | 0.15 mm |
| Minimum Bore Diameter (DMIN) | 6.8 mm | Cutting Depth Maximum (CDX) | 0.6 mm |
| Functional Length (LF) | 42.5 mm | Functional Width (WF) | 2.8 mm |
| Cutting Direction (HAND) | Right Hand | Usable Length (LU) | 20.5 mm |
| Coating | Uncoated | Body Material | Carbide |
| Grade | IB55 | Cutting Edge Material | PCBN |
| Application | | Int. Boring and Profiling | | Tool Type | Solid Carbide Turn Tool |
| Applicable Material | | Cast Iron | Hard Materials | | Measurement Type | Metric |
| Front End Width (a) | 6.3 mm |
Product Features
| Family Description | PICCO-JETCUT CBN tipped inserts with inner coolant channel, for internal turning profiling and chamfering of hard steel. | Country of Origin | Italy |
| Remarks | It is not recommended to use coolant when machining with CBN tipped tools Available on request only Solid tools are suitable for PICCO-N / PICCO ACE-N type holders only |
Shipping Info
Package Weight
0.047
