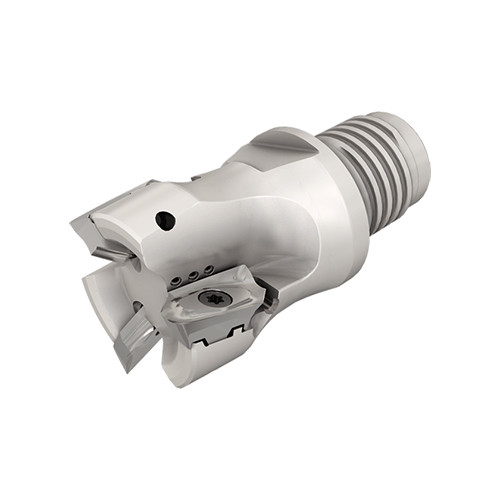

HM90 EALD125-3MMT21-15JHP
Indexable End Mill; 1-1/4″ Dia. × 0.5512″ LOC × 1.181″ Shank Dia. × 2.48″ OAL ; 3 FL ; 90 Degrees

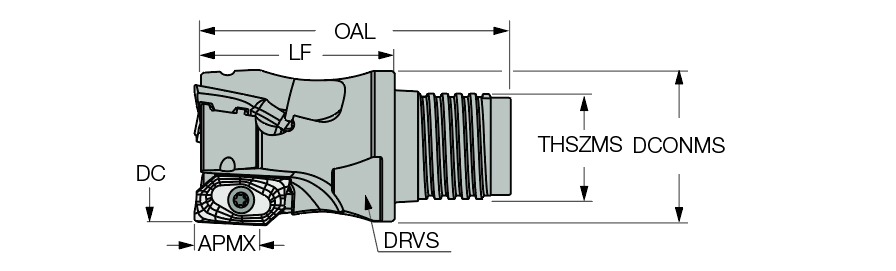

| Cutting Diameter (DC/DCX) | 1-1/4″ | Tool Type | 90° indexable endmills |
| Cutting Diameter (DC) | 1-1/4″ | Connection Thread Nominal Size Machine Side (THSZMS) | T21 |
| Cutting Item Count (CICT) | 3 | Drive Size (DRVS) | 0.945″ |
| Depth of Cut Maximum (APMX) | 0.5512″ | Flute Count (NOF) | 3 |
| Overall Length (OAL) | 2.48″ | Coolant Supply Property (CSP) | Coolant Thru |
| Ramping Angle Maximum (RMPX) | 13 Degrees | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1.181″ | Measurement Type | Inch |
| Master Insert Identification (MIID) | HM90 AXCR 150504R-P | Body Material | Steel |
| Functional Length (LF) | 1.571″ | Connection Code Machine Side (CCMS) | MultiMaster |
Product Features
| Family Description | 90° endmills with a MULTI-MASTER threaded adaptation carrying HM90 AXCR 1505... inserts for machining aluminum | Country of Origin | Israel |
| Remarks | For inserts with a corner radius larger than .157, tools must be modified by rounding the corners of the tool body according to the formula: R body's corner = R insert + .02 Do not apply lubricant to the MULTI-MASTER threaded connection For adaptation, click on More Info |
Shipping Info
Package Weight
0.606
