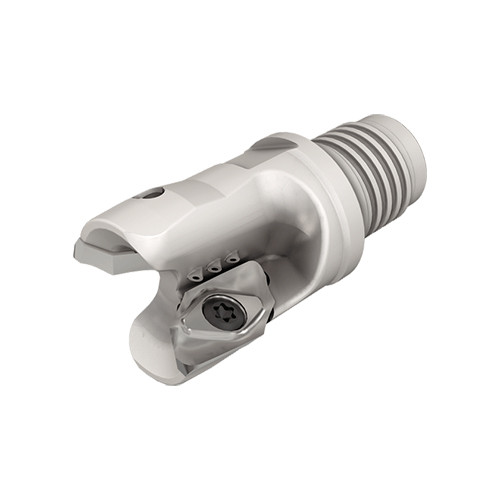

HM90 EALD150-2MMT21-16JHP
Indexable End Mill; 1-1/2″ Dia. × 0.6102″ LOC × 1.181″ Shank Dia. × 2.48″ OAL ; 2 FL ; 90 Degrees

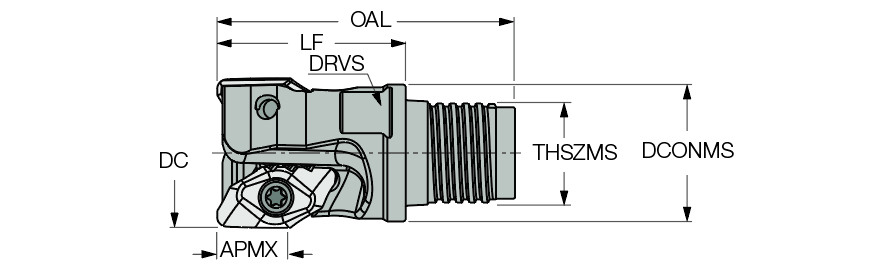

| Cutting Diameter (DC/DCX) | 1-1/2″ | Connection Thread Nominal Size Machine Side (THSZMS) | T21 |
| Cutting Diameter (DC) | 1-1/2″ | Drive Size (DRVS) | 0.945″ |
| Cutting Item Count (CICT) | 2 | Flute Count (NOF) | 2 |
| Depth of Cut Maximum (APMX) | 0.6102″ | Corner Radius (RE) | 0.1575″ |
| Overall Length (OAL) | 2.48″ | Coolant Supply Property (CSP) | Coolant Thru |
| Ramping Angle Maximum (RMPX) | 16.9 Degrees | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1.181″ | Measurement Type | Inch |
| Master Insert Identification (MIID) | HM90 APCR 160502R-P | Body Material | Steel |
| Functional Length (LF) | 1.571″ | Connection Code Machine Side (CCMS) | MultiMaster |
| Tool Type | 90° indexable endmills |
Product Features
| Family Description | 90° endmills with a MULTI-MASTER threaded adaptation carrying HM90 AXCR 1605... inserts for machining aluminum | Country of Origin | Israel |
| Remarks | For inserts with a corner radius larger than .126, tools must be modified by rounding the corners of the tool body according to the formula: R body's corner = R insert + .02 Do not apply lubricant to the MULTI-MASTER threaded connection For adaptation, click on More Info |
Shipping Info
Package Weight
0.690
