HM90 EAL D40-2-M16-16-JHP

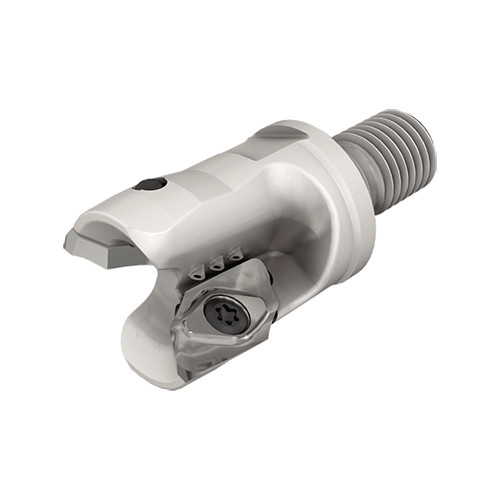

Indexable End Mill; 1.575″ Dia. × 0.6102″ LOC × 1.142″ Shank Dia. × 2.559″ OAL ; 2 FL ; 90 Degrees
| Cutting Diameter (DC/DCX) | 1.575″ | Tool Type | 90° indexable endmills |
| Cutting Diameter (DC) | 1.575″ | Connection Thread Nominal Size Machine Side (THSZMS) | M16 |
| Cutting Item Count (CICT) | 2 | Drive Size (DRVS) | 0.984″ |
| Depth of Cut Maximum (APMX) | 0.6102″ | Flute Count (NOF) | 2 |
| Overall Length (OAL) | 2.559″ | Corner Radius (RE) | 0.1575″ |
| Ramping Angle Maximum (RMPX) | 16.9 Degrees | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Connection Diameter Machine Side (DCONMS) | 1.142″ | Cutting Direction (HAND) | Right Hand |
| Master Insert Identification (MIID) | HM90 APCR 160502R-P | Measurement Type | Inch |
| Head Length (LH) | 1.457″ | Body Material | Steel |
| Functional Length (LF) | 1.575″ | Connection Code Machine Side (CCMS) | FLEXFIT |
Product Features
| Family Description | 90° endmills with a FLEXFIT threaded adaptation carrying HM90 APCR 1605... inserts for machining aluminum | Country of Origin | Israel |
| Remarks | For inserts with a corner radius larger than .126, tools must be modified by rounding the corners of the tool body according to the formula: R body's corner = R insert + .02 Before mounting the FLEXFIT adaptation, clean the mating surfaces and threads. Tighten to eliminate gaps, using the torque value from TQ_3 For adaptation, click on More Info |
