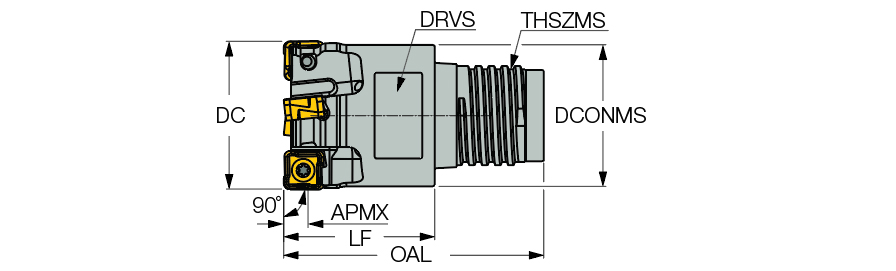

| Cutting Diameter (DC/DCX) | 25 mm | Functional Length (LF) | 25 mm |
| Cutting Diameter (DC) | 25 mm | Tool Type | 90° indexable endmills |
| Cutting Item Count (CICT) | 3 | Connection Thread Nominal Size Machine Side (THSZMS) | T15 |
| Depth of Cut Maximum (APMX) | 5 mm | Drive Size (DRVS) | 20 mm |
| Overall Length (OAL) | 42 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Ramping Angle Maximum (RMPX) | 0 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Shouldering | Slotting | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 23.9 mm | Body Material | Steel |
| Master Insert Identification (MIID) | S890 SZMU 0804... |
Product Features
| Family Description | Endmills carrying double-sided square inserts with 8 cutting edges with a MULTI-MASTER threaded adaptation | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info. |
Shipping Info
Package Weight
0.304
