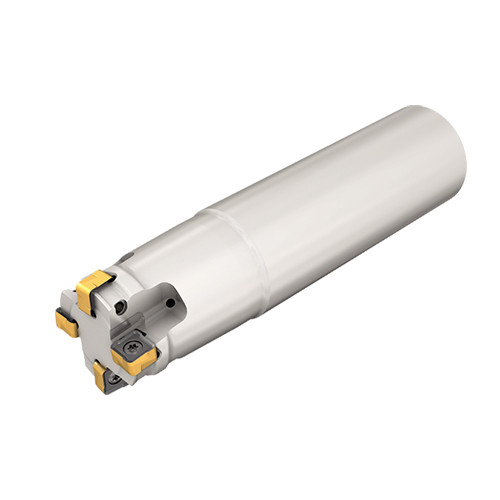

S890 ESZ D1.25-4-W1.25R08

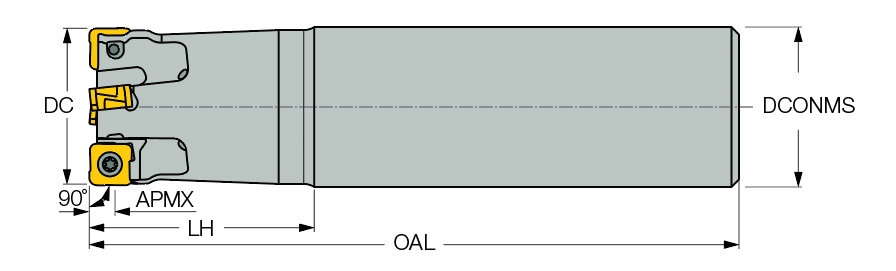

Indexable End Mill; 1-1/4″ Dia. × 0.2″ LOC × 1-1/4″ Shank Dia. × 4-1/4″ OAL ; 4 FL ; Weldon Shank ; 90 Degrees
| Cutting Diameter (DC/DCX) | 1-1/4″ | Head Length (LH) | 1-3/4″ |
| Cutting Diameter (DC) | 1-1/4″ | Functional Length (LF) | 4-3/4″ |
| Cutting Item Count (CICT) | 4 | Tool Type | 90° indexable endmills |
| Depth of Cut Maximum (APMX) | 0.2″ | Flute Count (NOF) | 4 |
| Overall Length (OAL) | 4-1/4″ | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Weldon | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Application | | Shouldering | Slotting | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Measurement Type | Inch |
| Master Insert Identification (MIID) | S890 SZMU 0804 | Body Material | Steel |
Product Features
| Family Description | Endmills carrying double-sided square inserts with 8 cutting edges | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info. |
