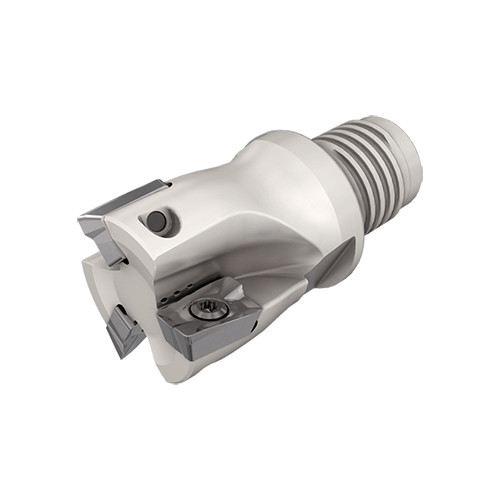

HM90 E90AD D32-3-MMT21JHP
Indexable End Mill; 32 mm Dia. × 14.3 mm LOC × 30.5 mm Shank Dia. × 63 mm OAL ; 3 FL ; 90 Degrees

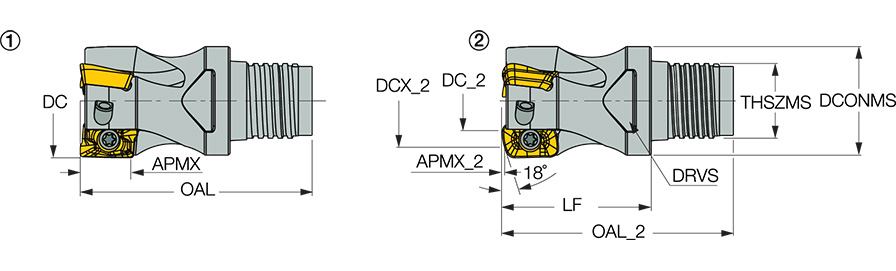

| Cutting Diameter (DC/DCX) | 32 mm | Tool Type | 90° indexable endmills |
| Cutting Diameter (DC) | 32 mm | Connection Thread Nominal Size Machine Side (THSZMS) | T21 |
| Cutting Item Count (CICT) | 3 | Drive Size (DRVS) | 24 mm |
| Depth of Cut Maximum (APMX) | 14.3 mm | Flute Count (NOF) | 3 |
| Overall Length (OAL) | 63 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Ramping Angle Maximum (RMPX) | 5.3 Degrees | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Application | | Counter Boring | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 30.5 mm | Measurement Type | Metric |
| Master Insert Identification (MIID) | ADKT 1505PDTR | Body Material | Steel |
| Functional Length (LF) | 39.9 mm | Connection Code Machine Side (CCMS) | MultiMaster |
Product Features
| Family Description | 90° JHP endmills with a MULTI-MASTER threaded adaptation carrying HELI2000 and HELIMILL Inserts | Country of Origin | Israel |
| Remarks | 1- with standard square insert 2- with FF (fast feed) insert Do not apply lubricant to the MULTI-MASTER threaded connection For tightening torque click on More Info |
Shipping Info
Package Weight
302
