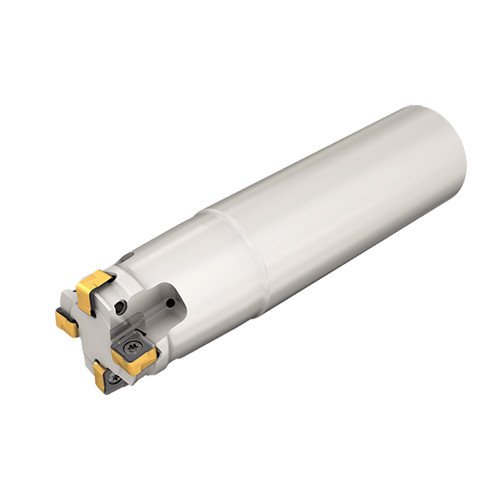

S890 ESZ D25-3-W25-R08
Indexable End Mill; 25 mm Dia. × 5 mm LOC × 25 mm Shank Dia. × 95 mm OAL ; 3 FL ; Weldon Shank ; 90 Degrees

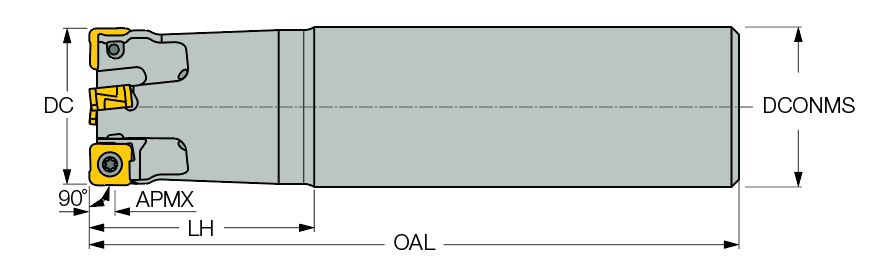

| Cutting Diameter (DC/DCX) | 25 mm | Head Length (LH) | 35 mm |
| Cutting Diameter (DC) | 25 mm | Tool Type | 90° indexable endmills |
| Cutting Item Count (CICT) | 3 | Flute Count (NOF) | 3 |
| Depth of Cut Maximum (APMX) | 5 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 95 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Shank Type | Weldon | Cutting Direction (HAND) | Right Hand |
| Application | | Shouldering | Slotting | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Body Material | Steel |
| Master Insert Identification (MIID) | S890 SZMU 0804 |
Product Features
| Family Description | Endmills carrying double-sided square inserts with 8 cutting edges | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info. |
Shipping Info
Package Weight
0.743
