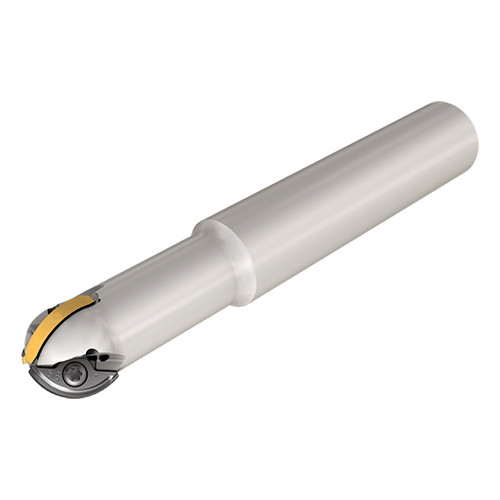

BLP D2.00-4.7-8.0-W2.0
Indexable End Mill; 2″ Dia. × 1-1/2″ LOC × 2″ Shank Dia. × 8″ OAL ; Weldon Shank
| Cutting Diameter (DC/DCX) | 2″ | Functional Length (LF) | 8″ |
| Cutting Diameter (DC) | 2″ | Tool Type | Ball nose endmills |
| Cutting Item Count (CICT) | 3 | Flute Count (NOF) | 3 |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Corner Radius (RE) | 1″ |
| Overall Length (OAL) | 8″ | Body Half Taper Angle (BHTA) | 240 Degrees |
| Shank Type | Weldon | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 2″ | Measurement Type | Inch |
| Master Insert Identification (MIID) | BLR D2.00-QT | Body Material | Steel |
| Head Length (LH) | 4.7″ | Cutting Diameter Maximum (DCX) | 2″ |
Product Features
| Family Description | Three flute fully effective 240° ball nose endmills carrying double-sided inserts. Designed for roughing, semi finishing and finishing at high feed rates. | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info |
Shipping Info
Package Weight
5.688
