BLP D32/1.25-M12
Indexable End Mill; 1.26″ Dia. × 0.945″ LOC × 0.906″ Shank Dia. × 2.441″ OAL ; 3 FL

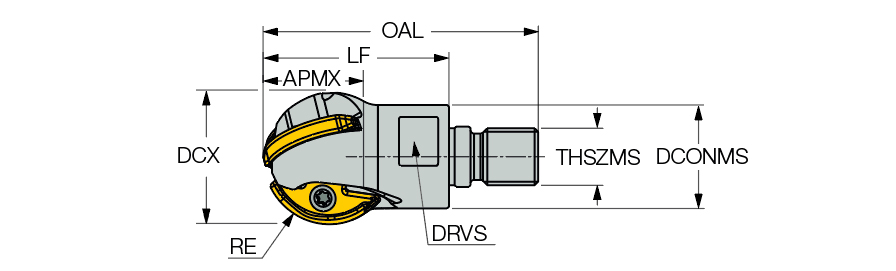

| Cutting Diameter (DC/DCX) | 1.26″ | Connection Thread Nominal Size Machine Side (THSZMS) | M12 |
| Cutting Diameter (DC) | 1.26″ | Drive Size (DRVS) | 0.669″ |
| Cutting Item Count (CICT) | 3 | Flute Count (NOF) | 3 |
| Depth of Cut Maximum (APMX) | 0.945″ | Corner Radius (RE) | 0.6299″ |
| Overall Length (OAL) | 2.441″ | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 0.906″ | Measurement Type | Inch |
| Master Insert Identification (MIID) | BLR D1.25-MFW | Body Material | Steel |
| Functional Length (LF) | 1.575″ | Connection Code Machine Side (CCMS) | FLEXFIT |
| Tool Type | Ball nose endmills | Cutting Diameter Maximum (DCX) | 1.26″ |
Product Features
| Family Description | Three flute fully effective 240° ball nose endmills with FLEXFIT threaded adaptation, carrying double-sided inserts. Designed for roughing, semi finishing and finishing at high feed rates. | Country of Origin | Israel |
| Remarks | Before mounting the FLEX-FIT adaptation, clean the mating surfaces and threads. Tighten to eliminate gaps, using the torque value from TQ_3. For adaptation, click on More Info |
Shipping Info
Package Weight
189
